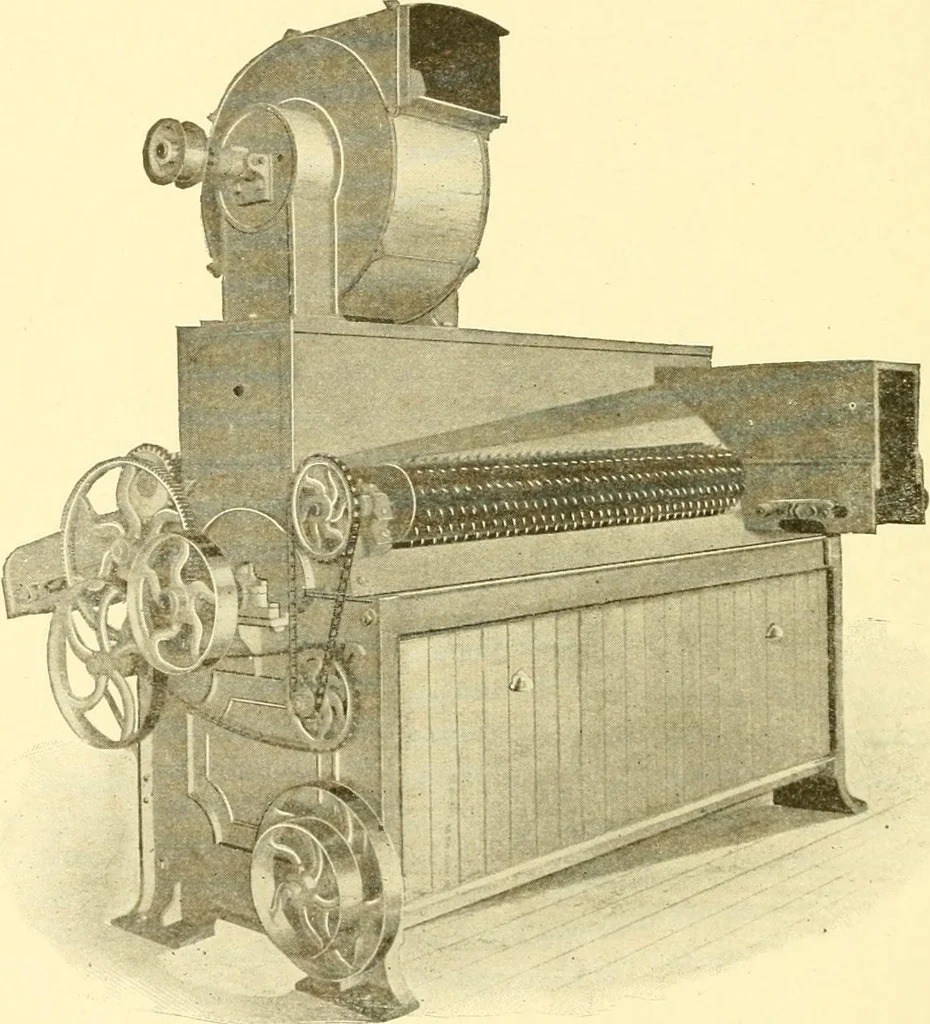

s given in the diagram Fig. 26 ; the arrows ou ^l 42 WOOLEN AND WORSTED SPINNING. the rolls, pulleys, etc., indicate the direction in which they revolvewhile the groups of arrows show the direction of the air current.A is the apron, li the feed roll, C the cylinder, D the worker, Ethe fan, F the… … Fig. 25. Duster With Worker KoU. be air-tight, and that dirt under the grid should not be allowed toaccumulate in too great quantity. The floor space occupied bythe duster is 9 X 7| feet. One of the important features of the cone duster is thefact that it makes this process continuous; the wool,…
