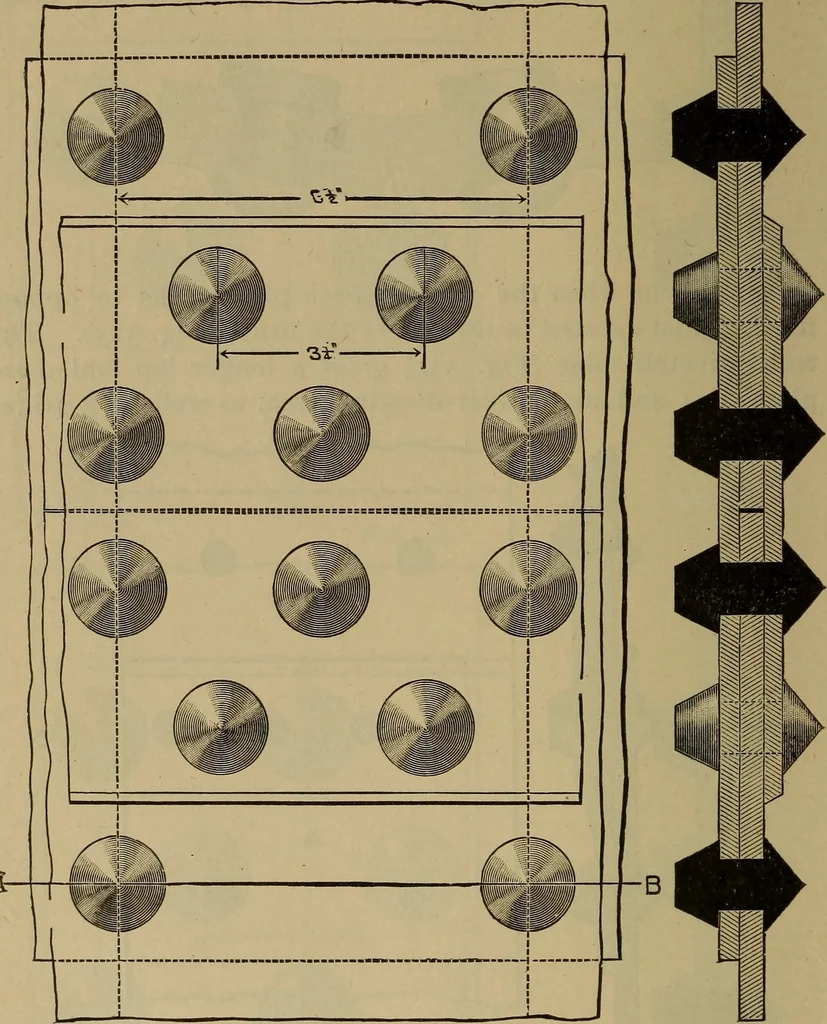

Fig. 337. joint. The butt-joint with double cover (Fig. 338) doublesthe number of rivets required as compared with the same classof lap-joints, but the strain is in line and without tendency to 404 MECHANICAL ENGINEERING OF POWER PLANTS. flex the plates, and the rivets are in double shear. It is… … Fig. 338. exposed to fire. The special joints are departures from thefour conventional types, seeking to secure the features of thedouble butt with less expense. Figs. 337, 338, and 339 will THE STEAM-BOILER. GENERAL CONSTRUCTION, 405 serve as types of such joints. The strength of single lap-joints…
