Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 104

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 104

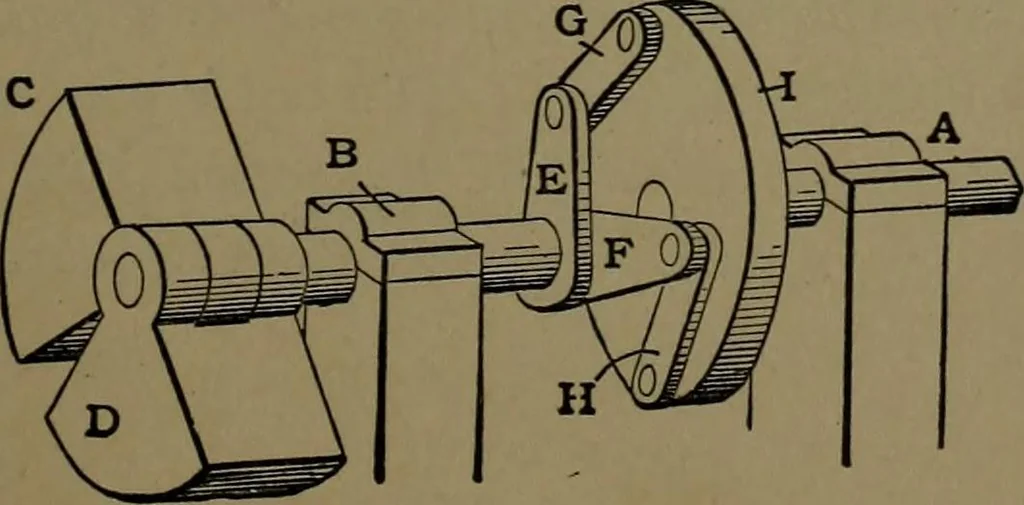

B ^-^ ^ 0 f Pi )u^ ^^r , -5 ll ^ v^ … 98 STEAM POWER. 360. KNICKERBOCKERFOUR-PISTON ROTARYENGINE.—A four-armedTyoke is socketed on a centrecommon to the four pistons.Its spindle is a crank pin,and makes a conical circuitwith the crank and shaft. The ends of the yoke are socketed to thepistons hy connecting rods. The pistons take steam…
