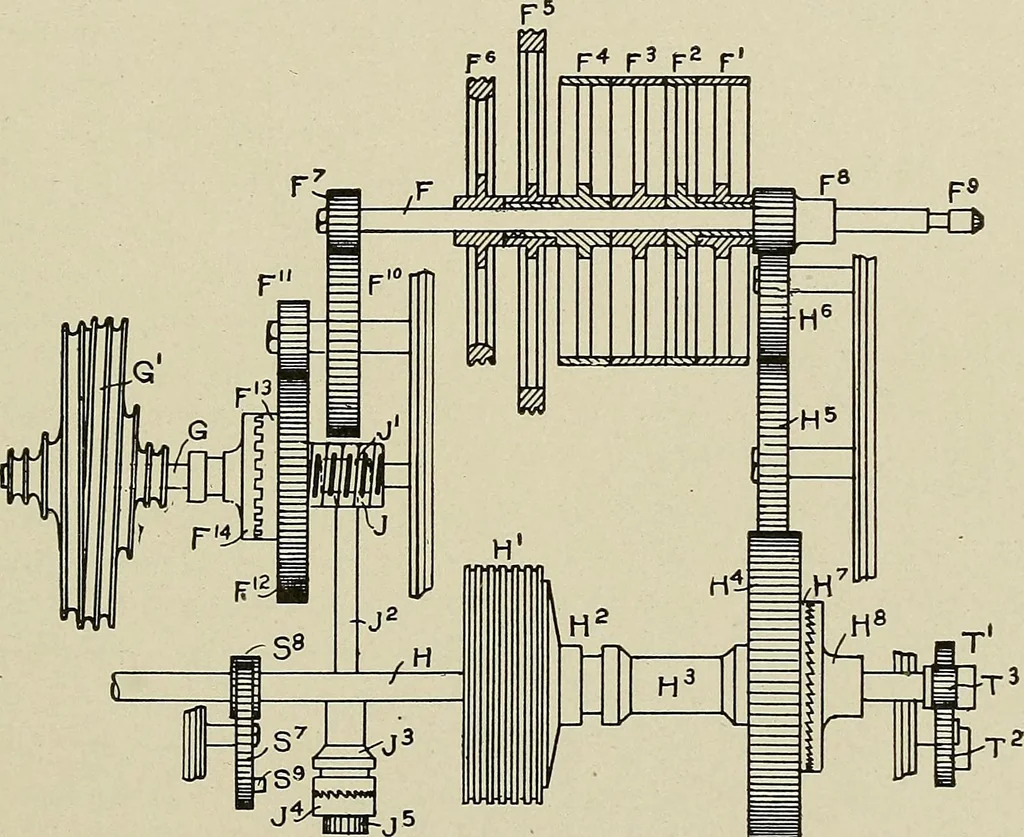

is made to operate with 262 WOOLEN AND WORSTED SPINNING 241 the part F. F^* slides on a key set into the shaft G. Through theabove pulleys, gears, and clutch, power is transmitted to the shaftG which carries the drawing-out scroll G^ When the shaft revolvesthe rope G^ (Fig. 157) is wound up on one… … Fiff. 156. Sectional View of Head Stock. is to keep the carriage running out steadily, and prevent it from over-running the drawing out rope G^. The revolving of the scroll G^serves two purposes; it winds up the rope G^, thus drawing out thecarriage, while the unwinding of G^ keeps the carriage…
