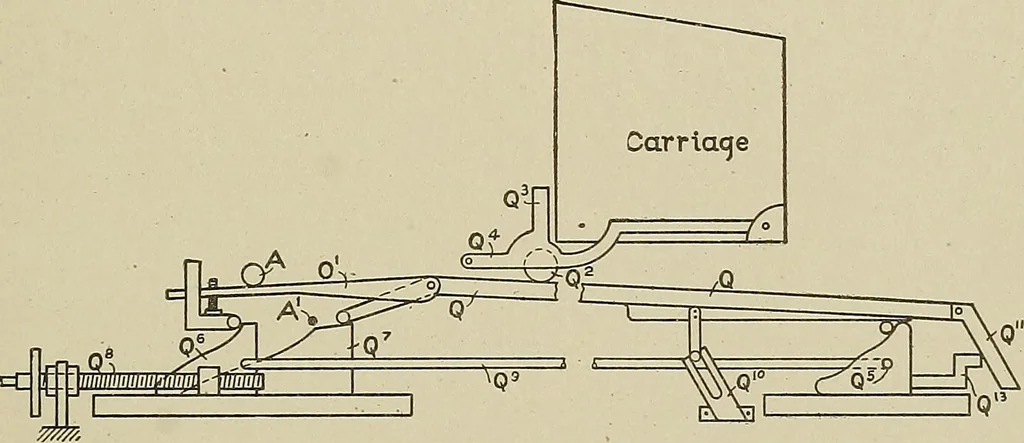

andthe greater number of spirals will have been wound on the bobbin,making it much firmer. The moving of shoe Q^ forces the casting Q^^ against the inclineQ, gradually raising it. As Q^ runs down the rail this constantlychanging angle in the rail causes a slight increase in tension at thispoint,… … Fig. 168. Details of Builder Shoe and Rail. as the carriage runs out it will come in contact with lever Q^^, causingthe sickle-shaped pair to drop, thus raising the other end and chainattached to it, which in turn raises the lever arm Q. (Fig. 169.)This lever is pivoted, one end -supporting a pawl…
