Cyclopedia of textile work : a general reference library on cotton, woolen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects (1911)

American School (Lansing, Ill.) · Chicago : American school of correspondence · leaf 319

An illustration from Cyclopedia of textile work : a general reference library on cotton, woolen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects, 1911, leaf 319

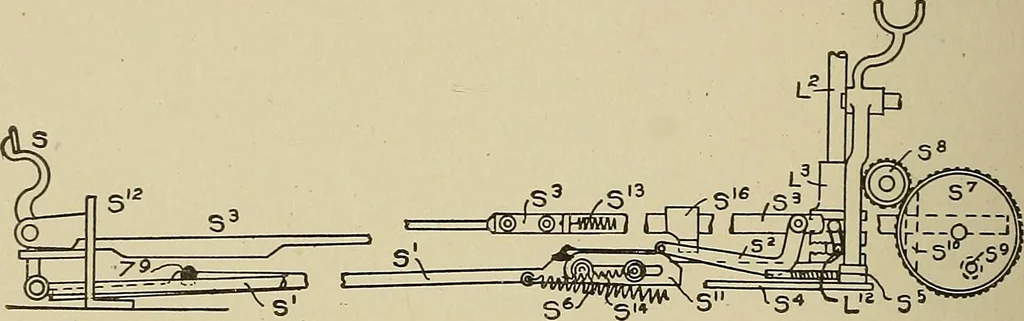

on the faller rods andraises the faller leg E^ till it slips over the end of the casting Q*, whichtravels on the top of the builder rail Q. The lifting of the leg over Q causes a spring to pull Z^° and Z,forcing the cluch M and M^*^ into gear. This clutch controls the … Fig. 171. Details of Latch Rod.winding of the yarn on the bobbin, as it allows the quadrant chain toturn the spindles. (See Fig. 162.) As the faller chain 7} is wounddown and faller leg E^ is raised, roll 7} is lifted, raising Tj and T},which are connected to it. Fast to 7} is a pin which rests in…

Textile fabrics · Textile industry
