Appleton's dictionary of machines, mechanics, engine-work, and engineering : illustrated with four thousand engravings on wood ; in two volumes (1873)
D. Appleton and Company · New York : D. Appleton and Co. · leaf 500

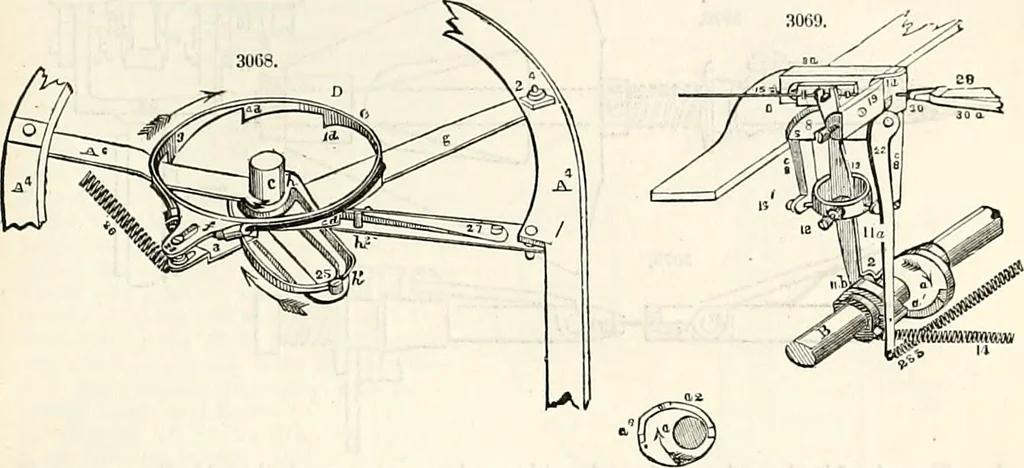

am is passing tlie stud, and before the tooth 63 readies said stud, tlie feeder mustrelax its grasp on the wire; and then before the feeder begins to advance, and while it remains station-ary in its retracted position, the tooth 63 of the cutter-cam must pass the stud, by which the cutter 18will be… … low part 61 of the cutter-cam, so as to retract the cutter 18 out of the way, to allow the feeder to intro-duce another succeeding portion of wire. The length of wire fed in and cut oft at each operation otthe feeding and cutting apparatus is equal to the length of the pin to be made, and a portion…
Mechanical engineering · Mechanics · Engineering
