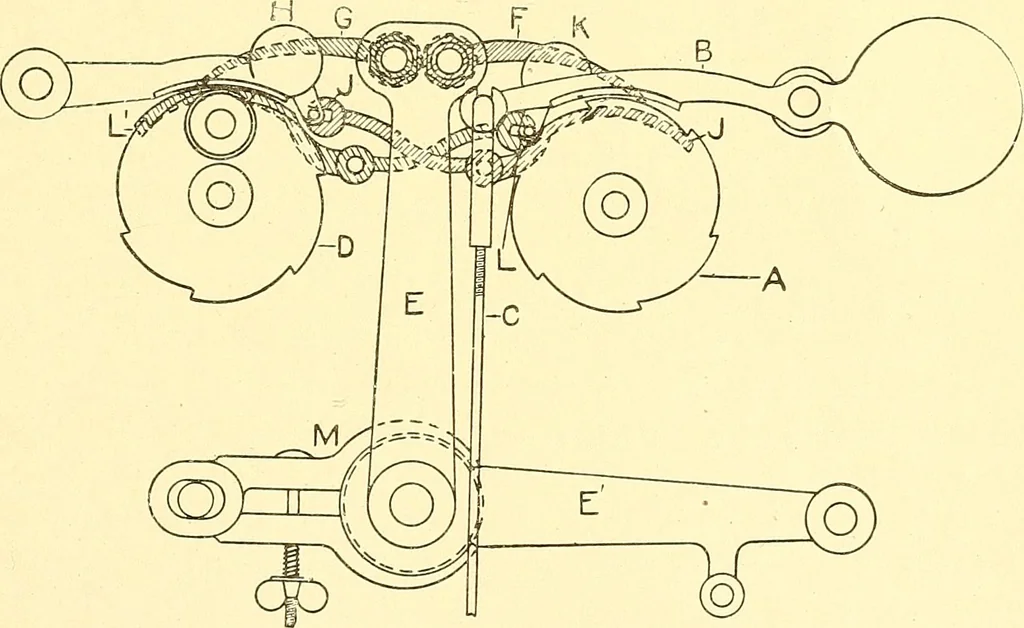

etch of which it is letteredE. There are two connecting rods, one for each lever. D. Multiplying ratchet which is fixed to the multiplierchain barrel. E. E. Elbow lever. F. G. Driving pawls Avhich are mounted on the upper endof E and work hi opposite directions. H. Small lever which rests on the… … Fig. 110. Upper Box Motion. The motion is driven through a connecting rod with a discon-necting device from a shell cam fixed on the pick-cam shaft. Astud is bolted to the loom side, forming a bearing for one end of asmall lever which carries two studs at the other end, one on eachside. One of…
