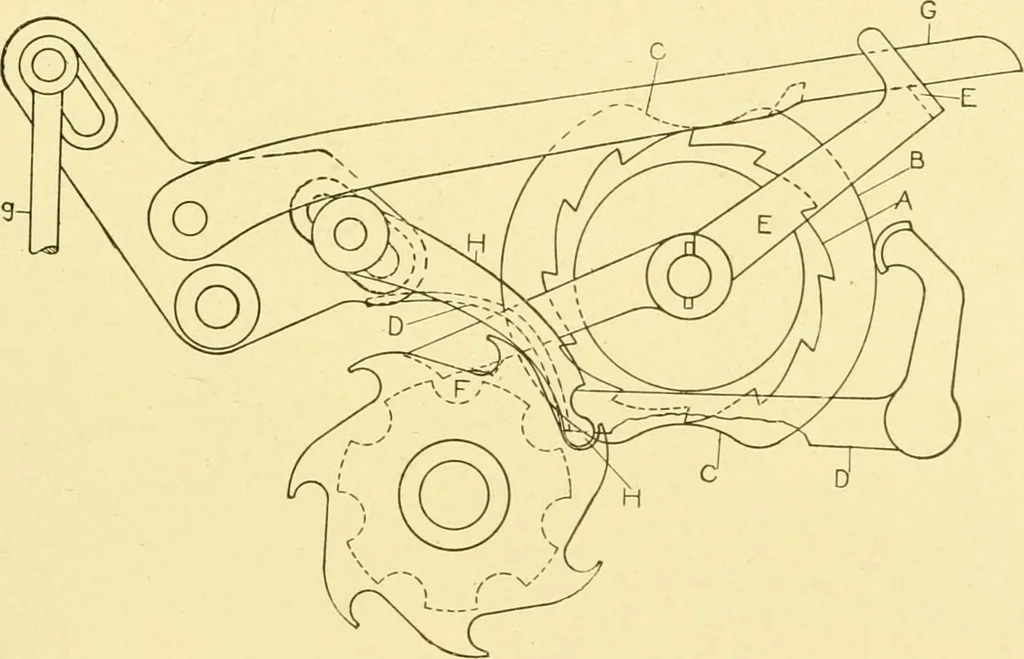

c having two indentations the value ofthe multiplier is half the number of teeth in the ratchet. The valueof a multiplier may readily be doubled by attaching a piece of tinto the disc so as to cover up one indentation, when its value willbecome double the whole number of teeth. The disc multiplier… … Fig. 114. Upper Box Mction. (Fig. 110) fixed on tlie pick cam shaft, one part of which actu-ates, through the connections, the oscillating lever on which aremounted tlie driving pawls. A disconnector, which prevents thedriving rod from working when the filling breaks, is actuated bythe smaller part…
