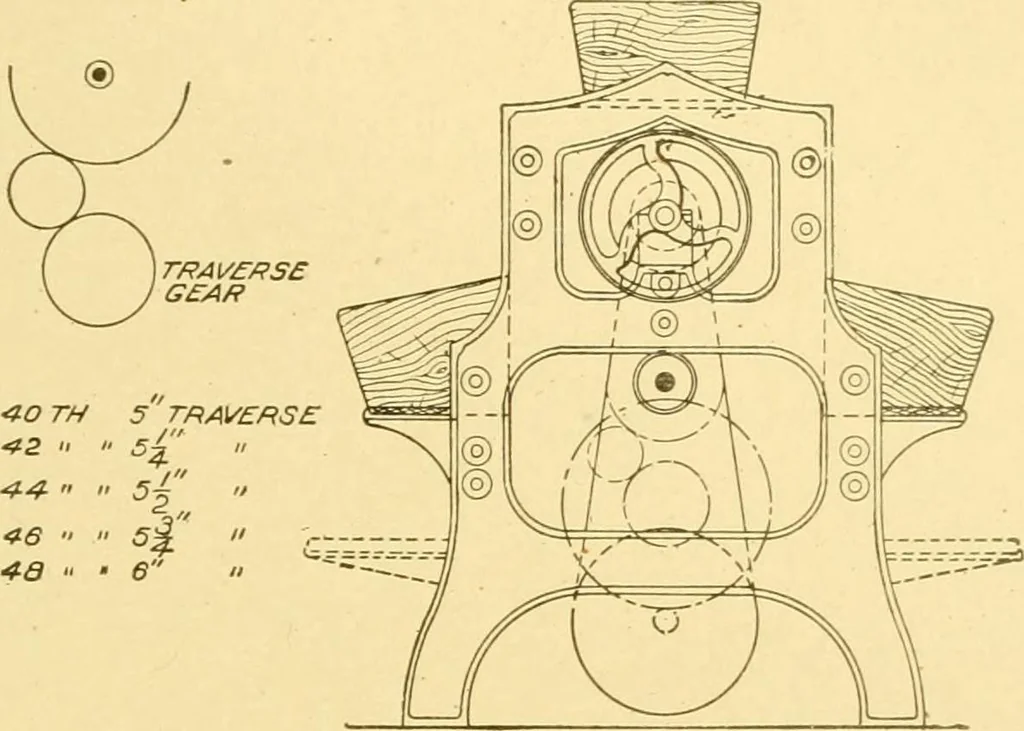

ed by the builder rail traveling more slowlyat the middle of the -traverse, and in this way allowing moreyam to be placed on the spool at this point. The building motion is as follows (see Figs. 3 and 4): A6-tooth pinion, A, imparts motion to the mangle gear, B ; on the 14 VYARP PREPARATION. same… … END VIEW OF SPOOLER. machine to the other. At different pLaces on tliis shaft are smallpulleys, to which are connected the chains that lift the builderrail. The mangle gear has a reciprocal motion, owing to the
