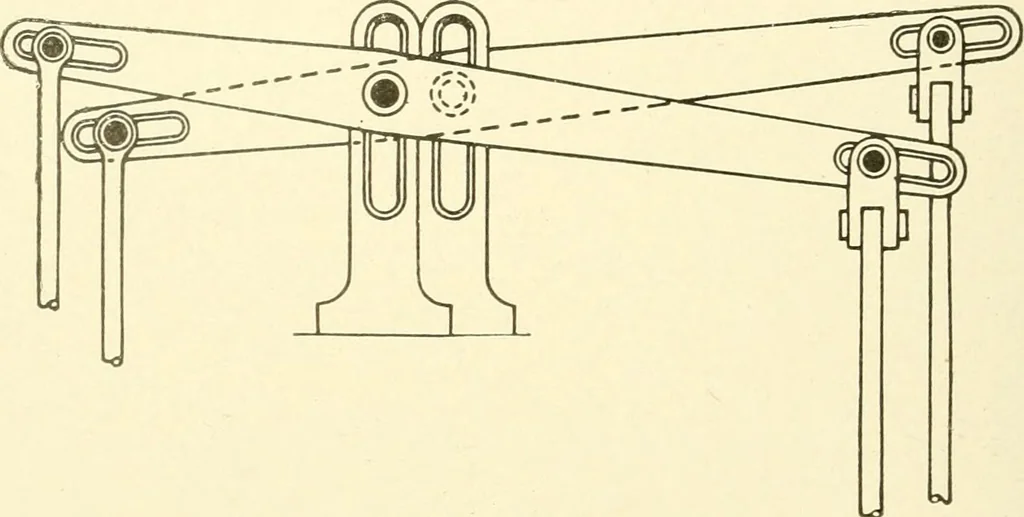

same relative position,but work from the opposite direction. There being two cylinders on this type of machine, one passesin as the other is going out. Both cylinders turn toward themachine as indicated by the arrows, and a glance at the two cardsA and B with holes marked 1 and 2, and needles… … Fig. 28. Showing Levers, Supports and Studs. lower bend of the hook. The reason for this latter is that it wouldrequire more space in the grate and the needles would have to belonger, which would make a bioader machine if the same shape ofhook were used; so that by the use of these hooks,…
