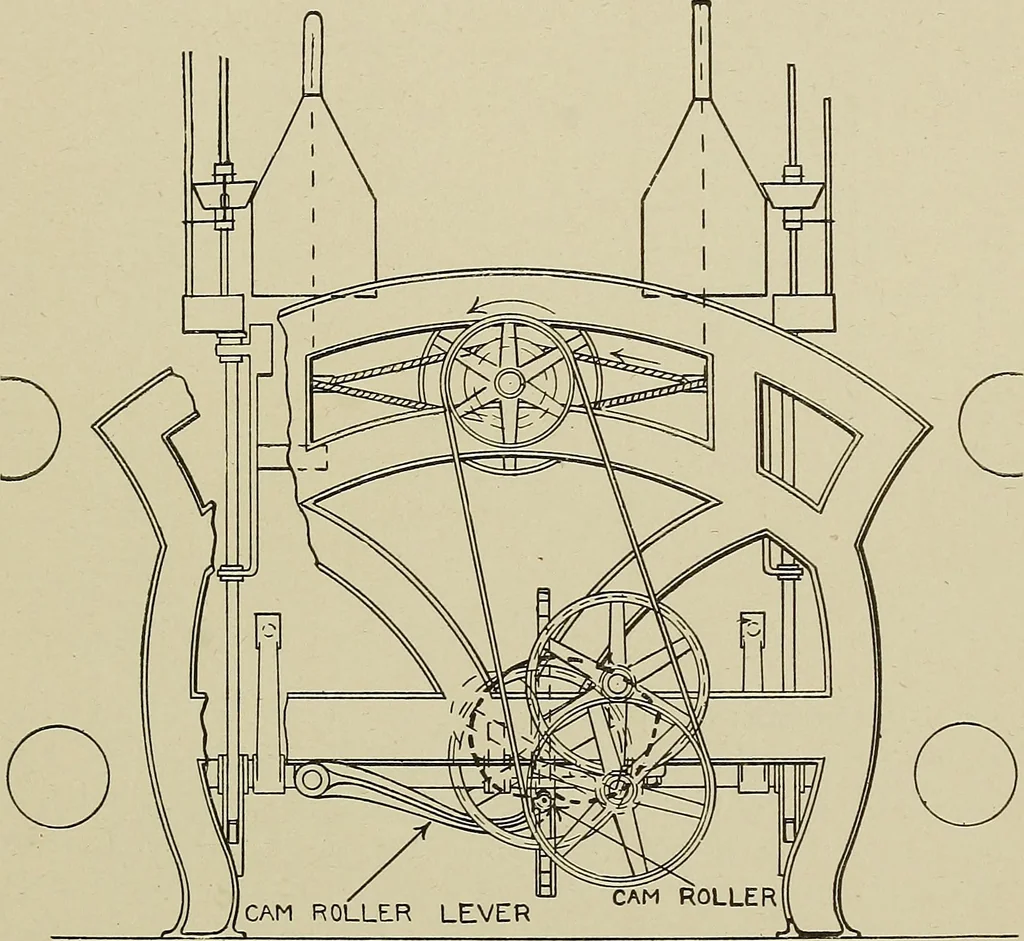

oss the close wind and binds it in a manner best adapted foruse on a knitting frame. The building rail, see Fig. 4, is con-nected with the heart cam in the following manner: By actionof the cam, a lever on a rockshaft parallel to the cam shaft, witha cam roll near the vibrating end is made to… … Fig. 5. End View of Cone Winder. lever, connected by upright rods to the building rail, gives to it arise and fall corresponding to the height of the cone-shaped por-.tioii of the winder bobbin. On a third lever of this rockshaft is aball weight to equalize the motion, balance the weight of the…
