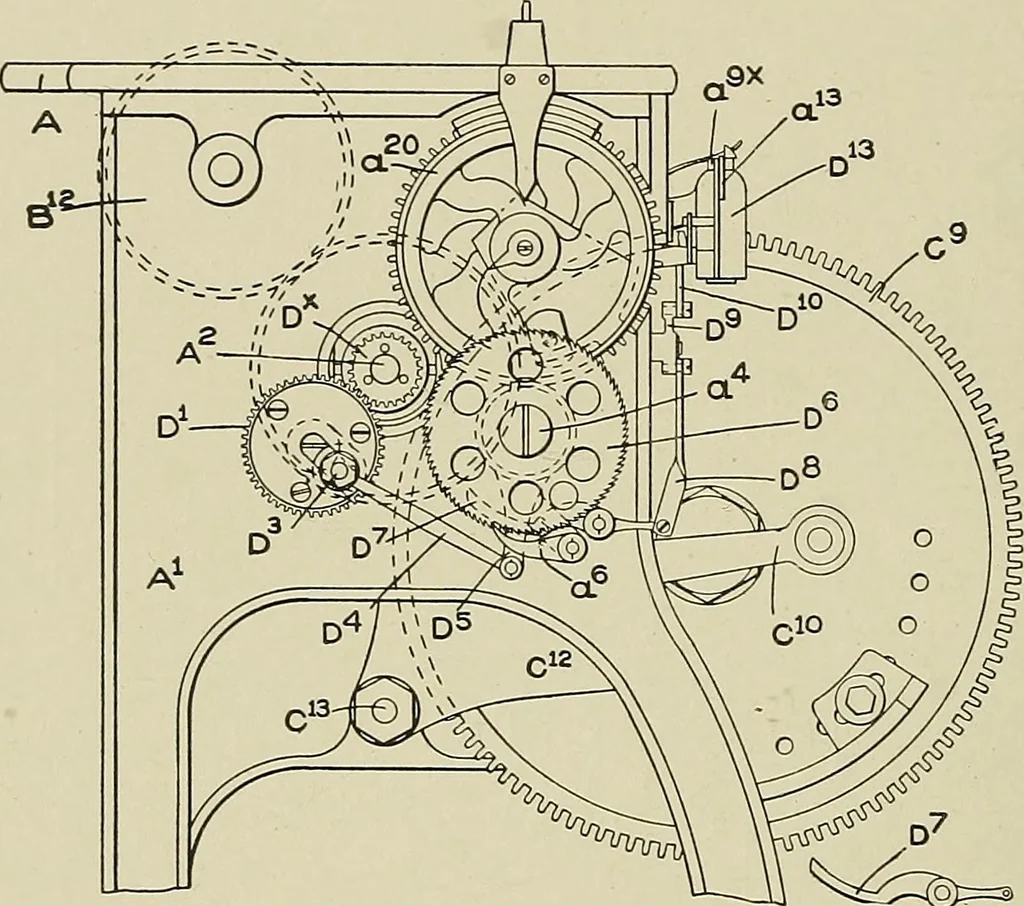

An illustration from Cyclopedia of textile work : a general reference library on cotton, woolen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects, 1911, leaf 271
itat one end (See Figs. 133 and 138) the pinion D by means of whichmotion is transmitted through the connecting pawl operating mechan= 239 222 KNITTING ism. This mechanism consists of the gear D^; the adjustably mount-ed crank pin D, which is attached to the link D^; the pawl carrier D^,which is… … ^^^I^fc-^ Fig. 138. Gears and Ratchets. The crank pin D^ may be adjusted to control the stroke of thepawl, so that it will move the ratchet wheel the distance of one or anydesired number of teeth; the greater the movement of the ratchet wheelthe shorter the stocking, and vice versa. The pawl has in…
