Knitting; a manual of practical instruction in the mechanical details of all types of knitting machinery, their operation, adjustment, and care (1909)
American School of Correspondence, Metcalf, M. A. [from old catalog] · Chicago, American school of correspondence · leaf 282

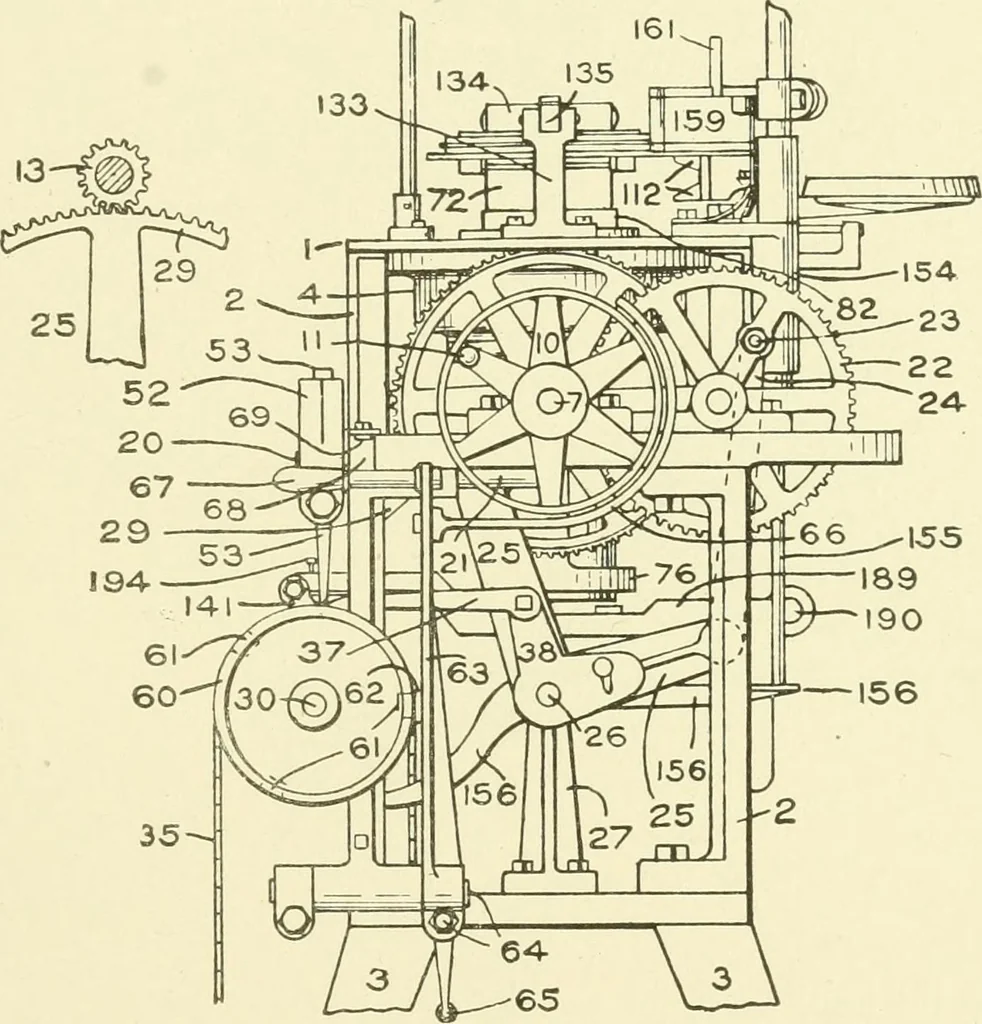

lso 254 KNITTING 237 Fig. 164), the pulley having teeth to engage the links in the pattern-chain, some links having lugs 36. The ratchet and pulley are drivenin the direction of the arrow shown in Fig. 162, by means of a pawl 37connected with one end of an elbow-arm 38 (see Fig. 148) mountedon… … Fig. 148. is a shield 24, on which the pawl rides during a portion of its stroke.The shield is secured to the bracket with a bolt to adjust the amount offeed imparted to the pattern-chain. A ratchet 43 (see Figs. 163 and164) is secured to the shaft 30 on the opposite side of the pulley 34;and this…
Knitting machines
