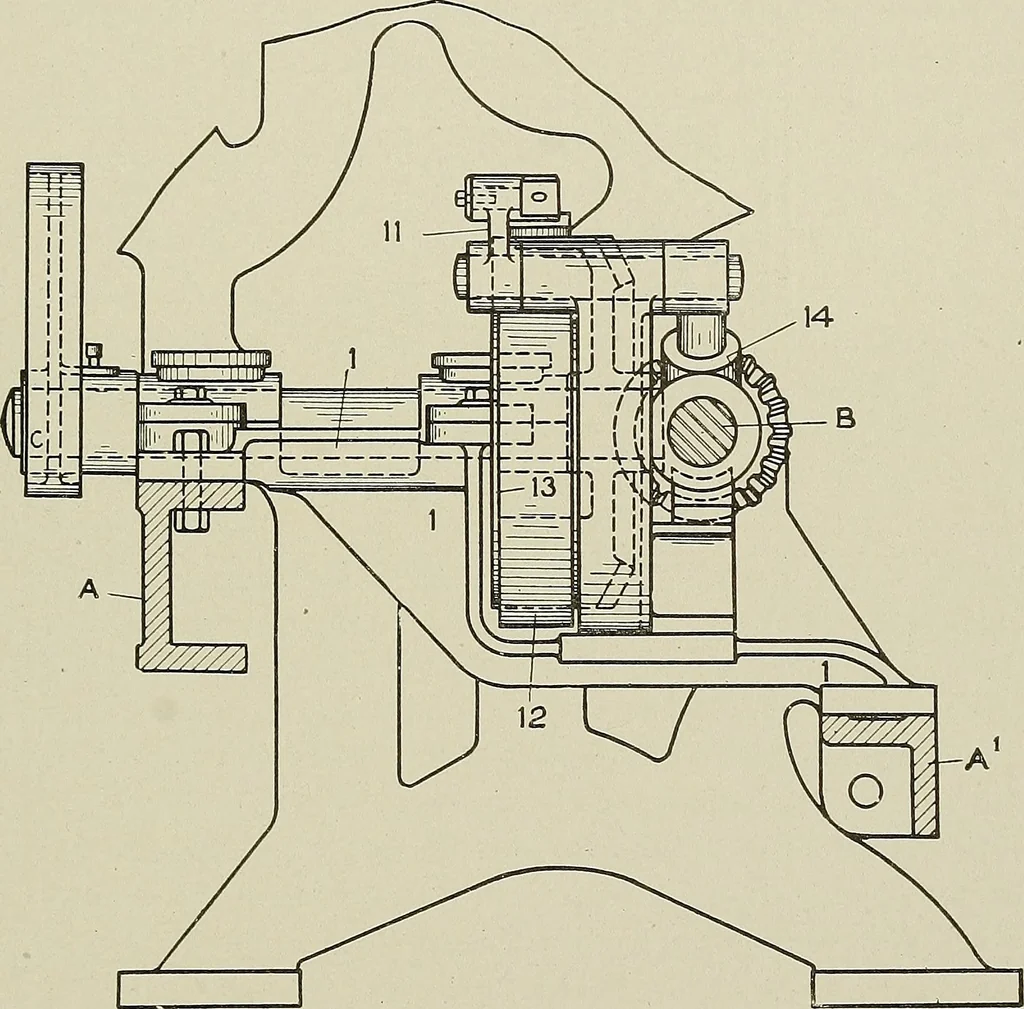

s: The lever 11 is pivoted at one end to a shaft 12, and is provided 286 KNITTING 269 intermediate of its length with a roller 13, which bears normally uponthe concentric periphery 14 of a disc fixed to the rotary shaft 15, uponwhich the lever is thus supported without movement; but when theshaft… … Fig. 181. Draw-Cam Shaft, Bearing, and Brake. nected to the free end of the lever IL is a rod 17, the upper end 18 ofwhich is engaged so as to slide in a sleeve 20, which in turn is pivotallyconnected at 21 to an arm 22 fixed to the shaft 8. The free movementof the rod-end 18 in said sleeve is…
