Knitting; a manual of practical instruction in the mechanical details of all types of knitting machinery, their operation, adjustment, and care (1909)
American School of Correspondence, Metcalf, M. A. [from old catalog] · Chicago, American school of correspondence · leaf 132

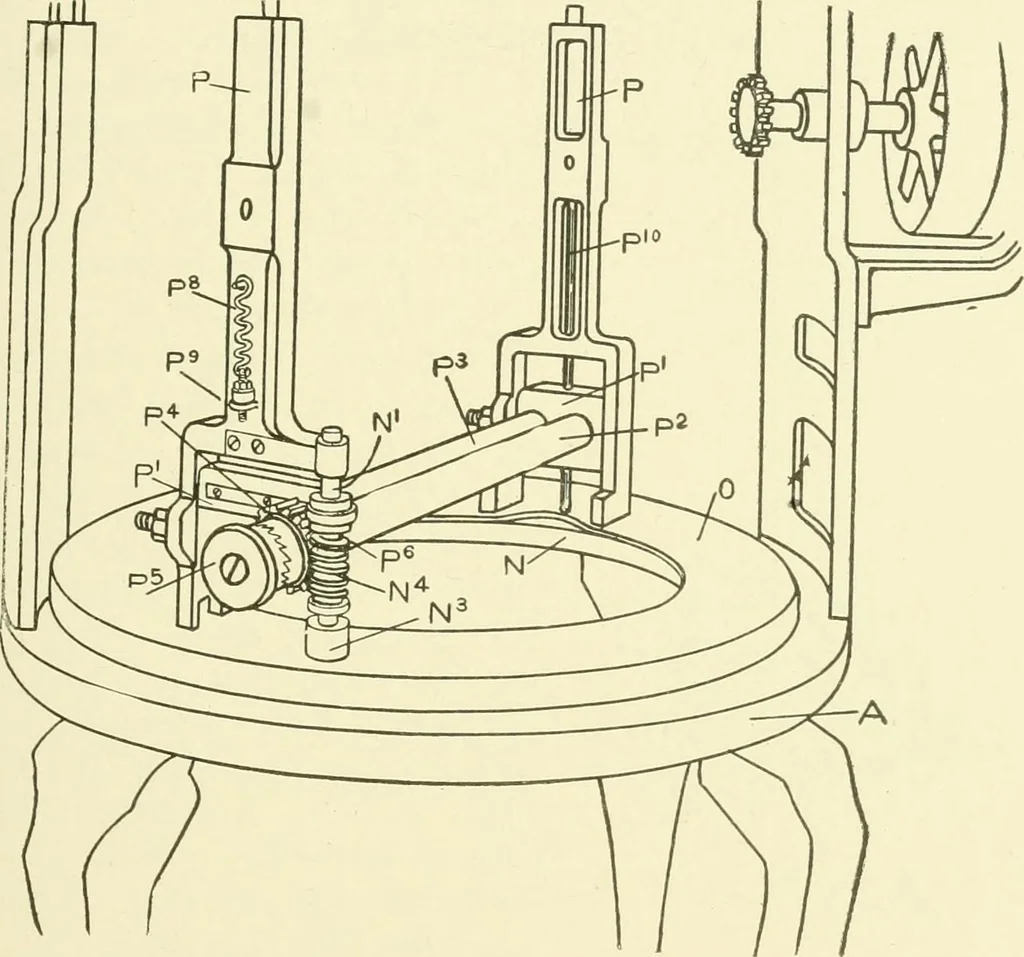

redetermined by the lugs on thepattern chain. The pattern chain is operated by the cam M on 118 KNITTING 105 the take-up arm, which raises the chain driver lever each revohition,and by means of a pawl lever, moves the chain ratchet andsprocket ahead one tooth, unless prevented by the idler ratchet,… … Fig. 48. Frame and Take-up. plate, which carries a bearing for the pinion shaft N\ on the lowerend of which is a pinion N, meshing with the bedplate gear N. Onthe pinion shaft is fixed a single-toothed clutch N\ and a worm N*,journaled on the same shaft. The take-up arms P are supported ontop of…
