Society of Glass Technology · [Sheffield] · leaf 579

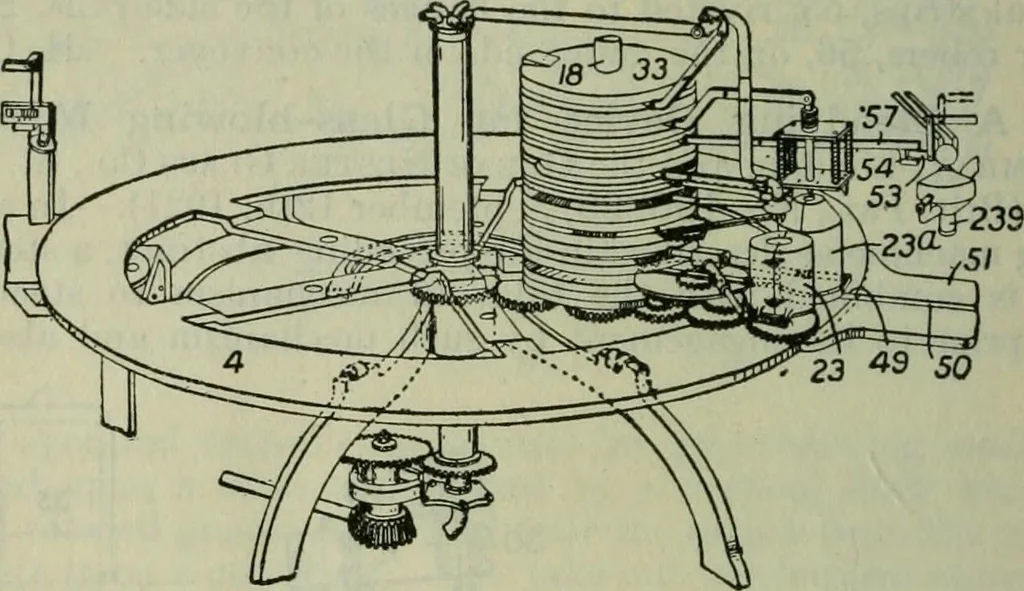

rovided with means, mounted on and carried bythe mould support, for positioning each mould in turn beneath thedelivery orifice of the feeding device. The machine consists of atable, 4, which is rotated step by step and carries pairs of moulds,23, 23a. Each pair of moulds is associated with a cam,… … Fig. 87. of the table with a groove, 50, on a platform, 51, leading to thefurnace, and the parison mould, 23a, is provided with a lug on itsunder surface which slides in the grooves. The mould is movedoutwards when the table stops and comes to rest beneath thefeeder, 239, and after receiving a…
Glass
