An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 51

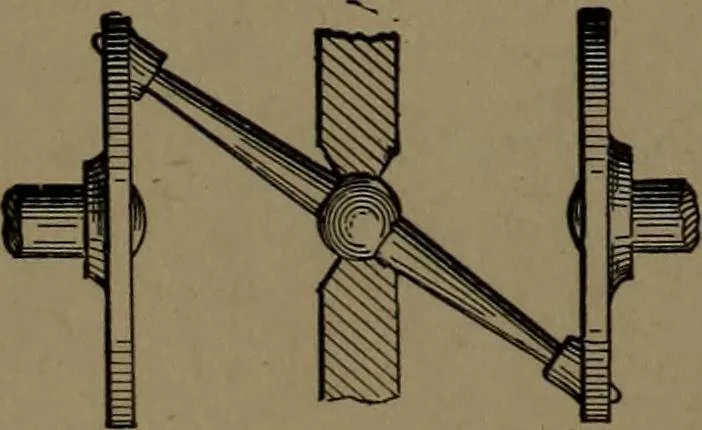

138a. PARALLEL MOTION ofpliers. The jaws are double pivoted atequal distances from the center pivot ofthe handles. 138^. TRANSMISSION OF CIR-CULAR MOTION by link and sHdingblock. Block is fast on link^at half dis-tance for equal crank lengths. 138c. REVERSING LEVER withrack sector and worm gear.…
