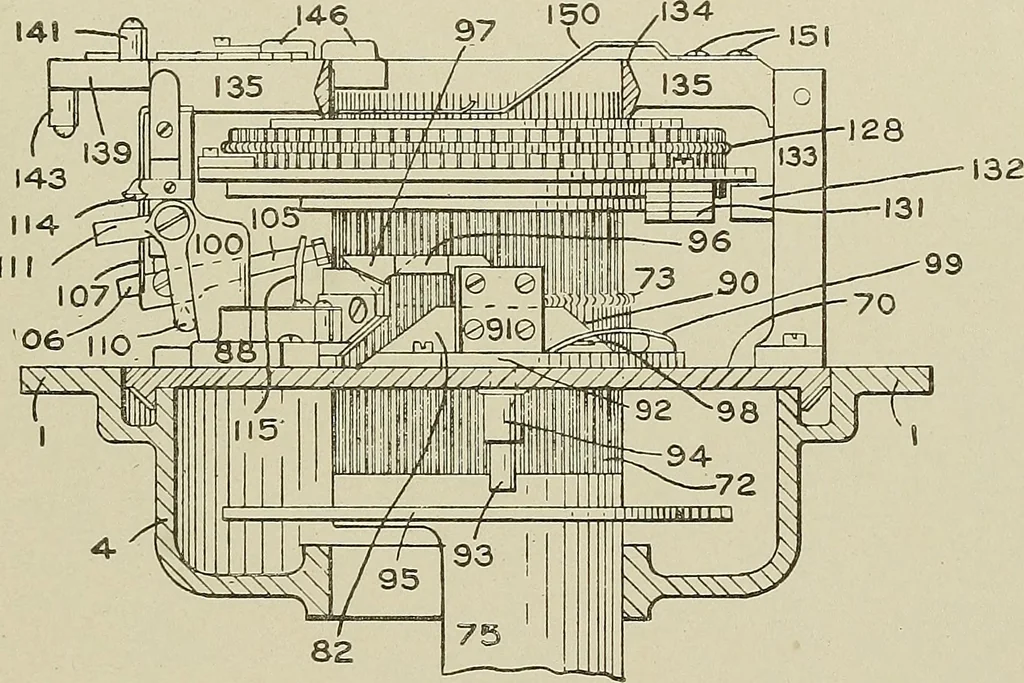

-pend from the bottom of the cup-shaped bearing 4. The ring 76 has aprojecting lug 78 (see Figs. 149 and 150), to which block 79 is securedby means of a bolt. A stop 81 extends vertically through the inner endof the block and projects above It. The web-guide 75 rests on thestop, except when raised… … Fig. 152. The Knitting Cams, A cam-web 82 which forms about three-fourths of a circle (see Figs. 152, 153, 154, 157, and 158), is formed ateach end with an incline or cam 83, and is secured to thie ring 70. Thecams 83 act on the heels of the needles to raise them during the knittingoperation, the…
