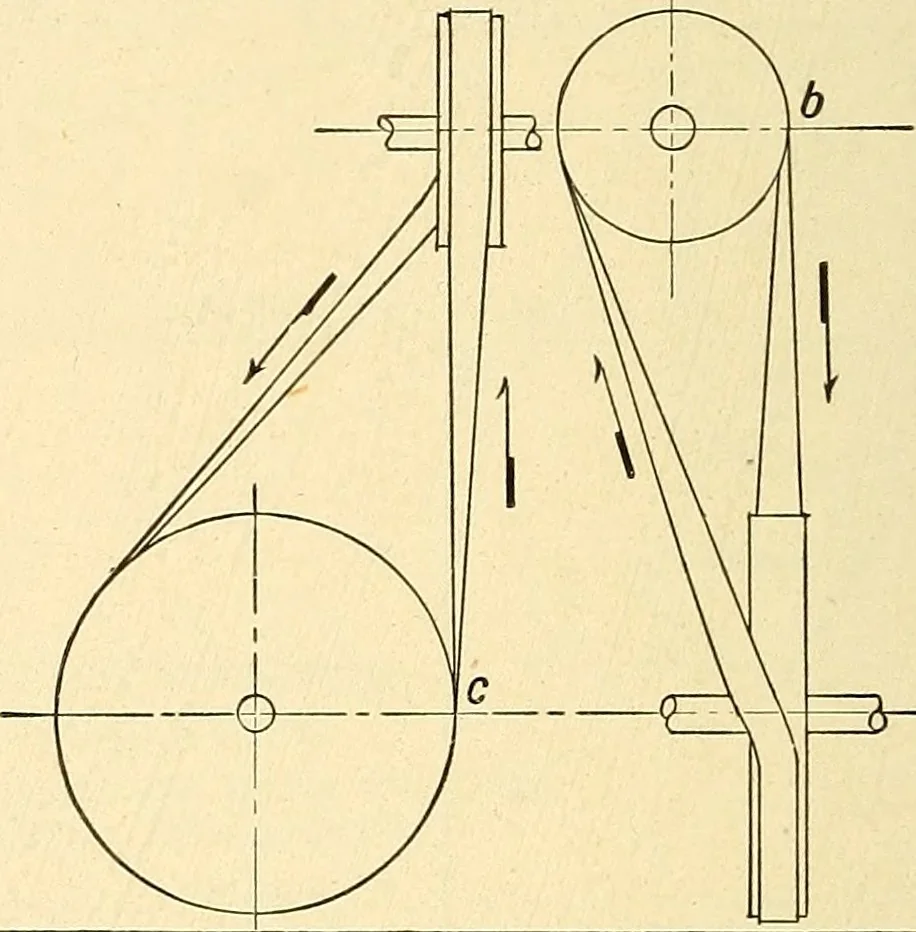

b lying in the mid-plane of the large pulley, and pointc lying in the midplane of the small pulley. But if the direction be reversed a guidepulley would be necessary to compel the belt to fulfill the above conditions. The pointat which the direction of the belt is changed by the guide pulley is… … Problem 1. Draw the projections of a guide pulley 8 units diameter, 2 units face, and determine the shaft angle with V and H.(Art. 45, page 32.) Problem 2. Draw the projections of one guide pulley 8 units diameter, 2 units face, and determine the shaft angle with V and H.(Art. 4ft, page 32.) Unit…
