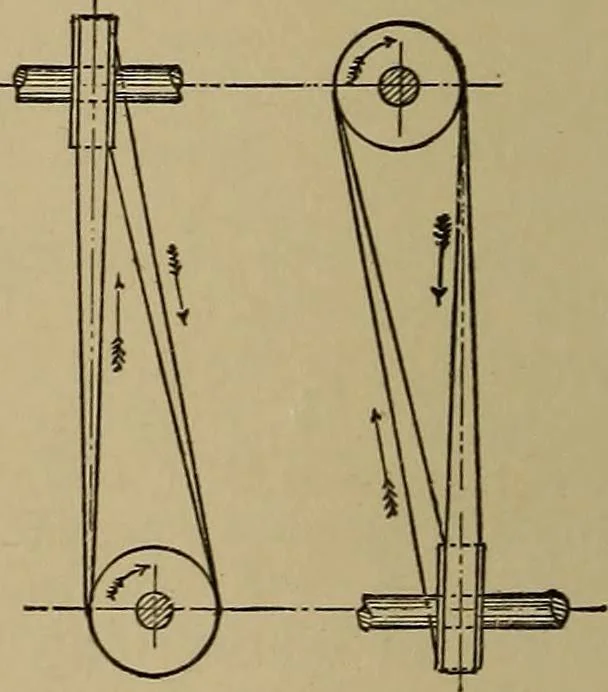

belt will do its share of the work. Quarter=Turn Belts. Fig. 3 shows a so-called quarter-turn belt, used to connect two shaftswhen running at an angle and layingin different planes. The principalpoint to look out for is to place thepulleys (as shown in Fig. 3) so thatthe belt runs straight from the…
