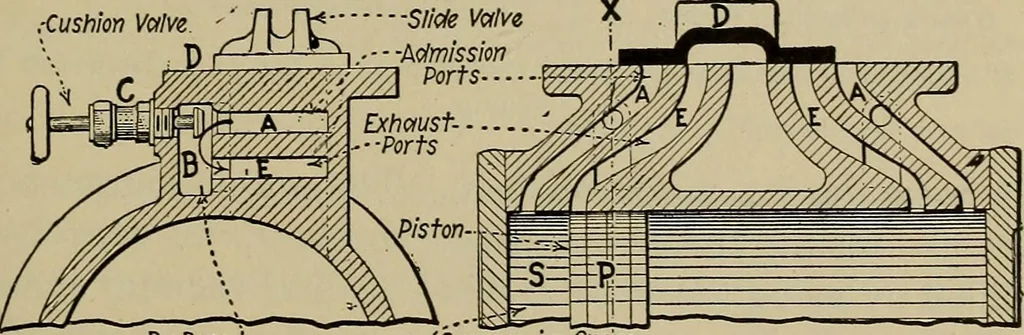

Fig. 80.—Mechanism For Outside Ad-justment Of Lost Motion In Duplex-PumpValve Gear. Note.—The Valve-Stems Are Often Rigidly Attached (Fig. 79)to the slide-valves. In such cases a link mechanism (Fig. 80), with slidingblocks and tappets, is provided for adjusting the lost-motion outside… … By Pass-- •Compression Spaoz Y . I- Cross-Section on Line X-Y E-loncj i t u ol i noil Section Fig. 81.—How Duplex-Pump Pistons Are Steam-Cushioned. 74. Compression-Space In The Steam-Cylinders Of DuplexPumps is the volume of cylinder-space S, (Fig. 81) in frontof the piston, plus the volume of…
