Goldingham, Arthur Hugh. [from old catalog] · New York, Spon & Chamberlain; [etc., etc.] · leaf 129

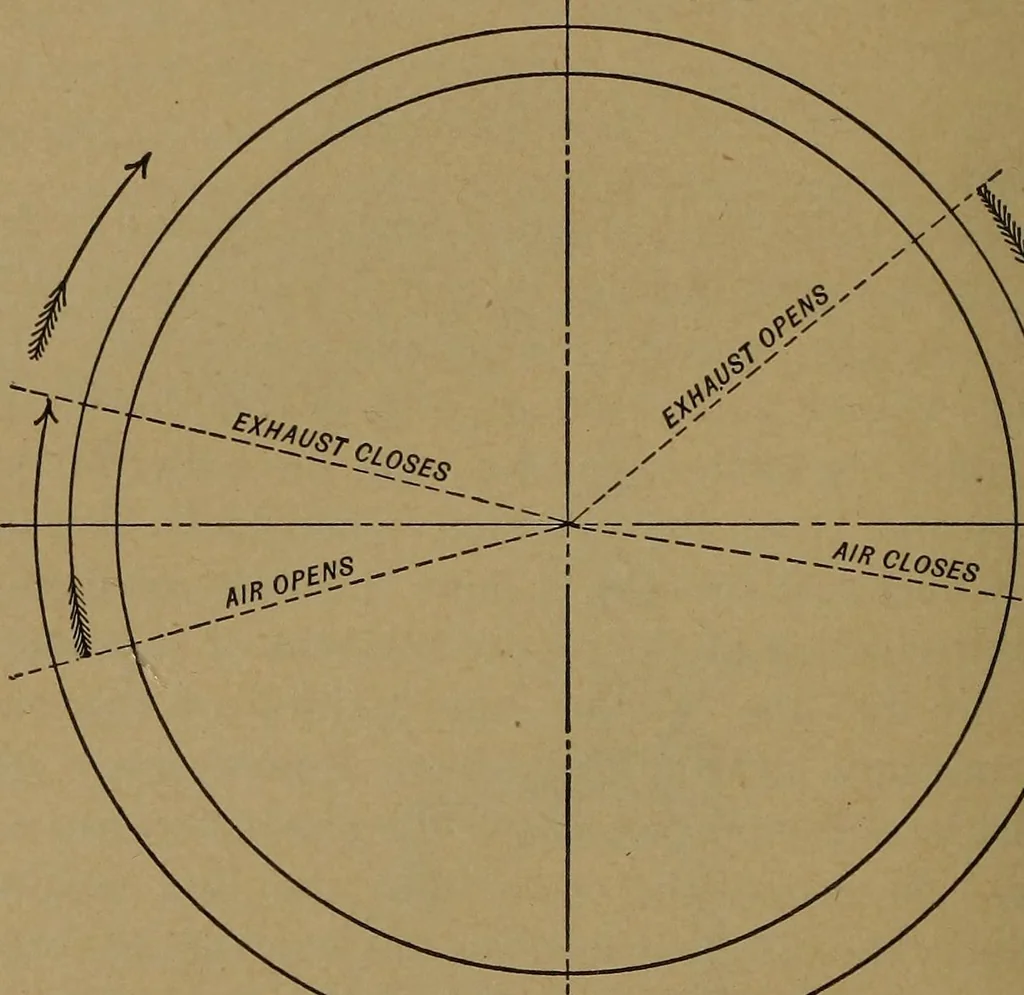

amountof oil which is consumed for the power developed.Where more detailed tests are required, the tempera-ture of the exhaust gases, the amount of air consumedin the cylinder, its temperature and barometrical pres- 6o OIL ENGINES. sure, together with the amount of cooling water neces-sary to keep… … Fig. 32. shown in diagram, Fig. 32, for engines having both aiiand exhaust valves actuated from the crank-shaft.The air-valve closes, as shown, just after the crank-pinhas passed the out centre, the exhaust-valve opening atabout 85 per cent, of the full stroke and closing just TESTING ENGINES. 6l…
Internal combustion engines
