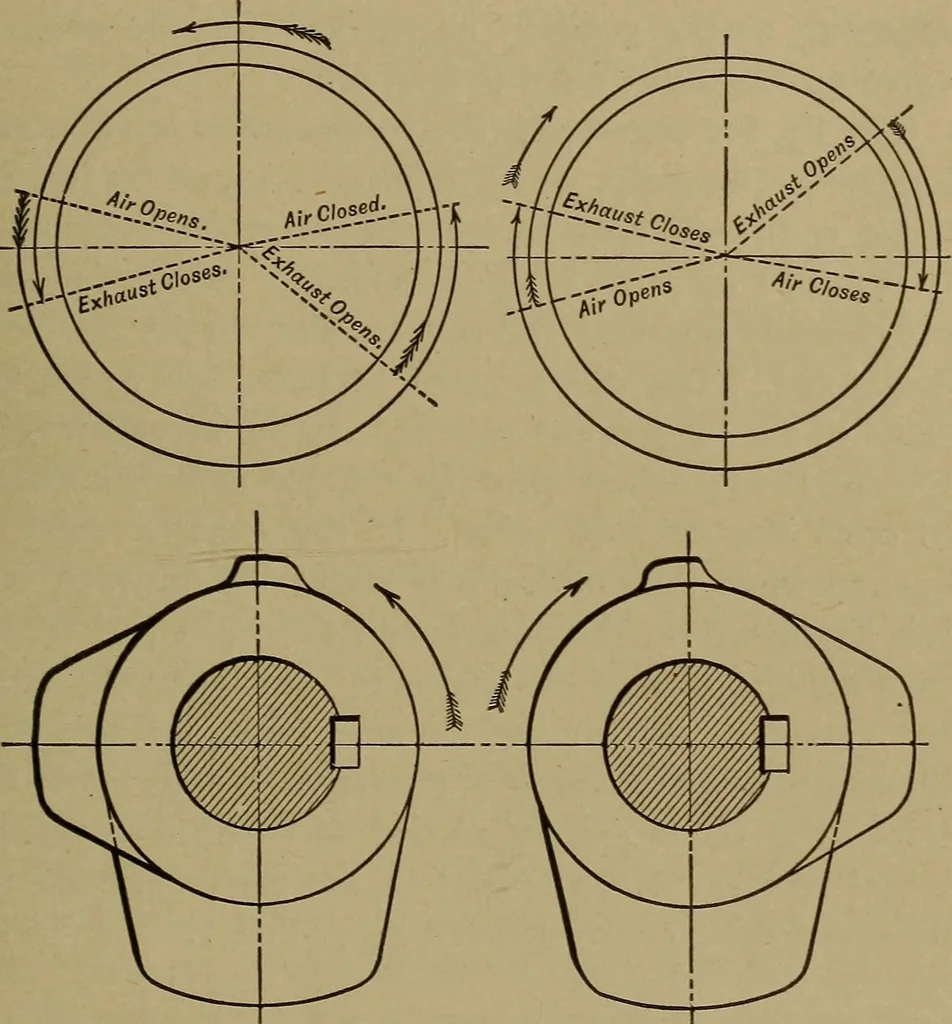

hich one cam controlsboth the air-inlet valve and the fuel supply, the shift-ing of this one cam alone effects the change necessary.*Where the fuel supply is operated separately, the cam *The position of the exhaust cam to conform to thediagrams in Fig. 69 is changed by alteration of the gear-ing… … Fig. 69. of the opening and closing of the valves when theengine is running in each direction, and the cams as setfor each case are shown in Fig. 69, the slot for key-way in the air-inlet cam having been changed only. I56 OIL ENGINES Where the air-inlet valve is automatic and the ex-haust valve…
Internal combustion engines
