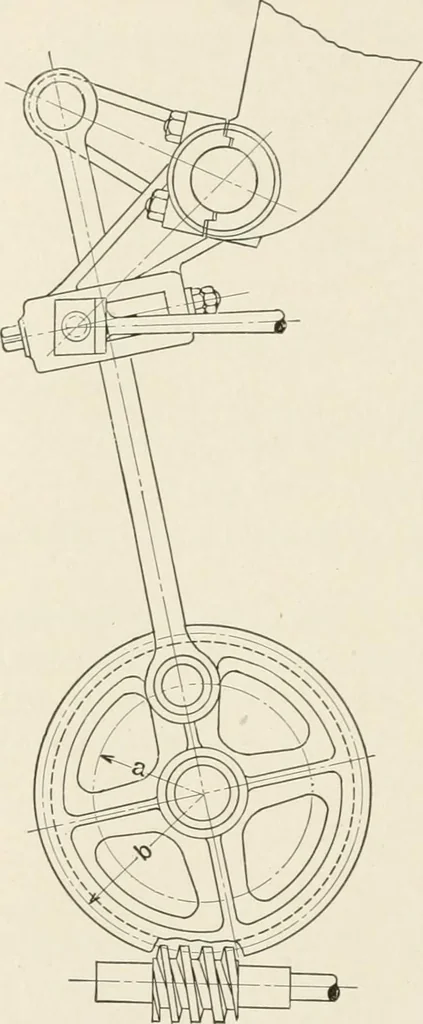

. The diameter of theconnecting rod at the ends canbe 0.85 of the diameter at themiddle. The length of the pistonrod will be about 1.5 the stroke of the reversing engine, and thestroke of the reversing engine will be about 0.75 of the distancebetween the eccentric rod pins on the Knks. The length… … Fig. 95. TURNING ENGINES AND REVERSING ENGINES 175 designed to carry a bearing pressure of 3000 pounds to the squareinch, since the swing of the connecting rod is very small and theengine is not in use a sufficient length of time to heat the pin.The crosshead guide is a rod of circular section and…
