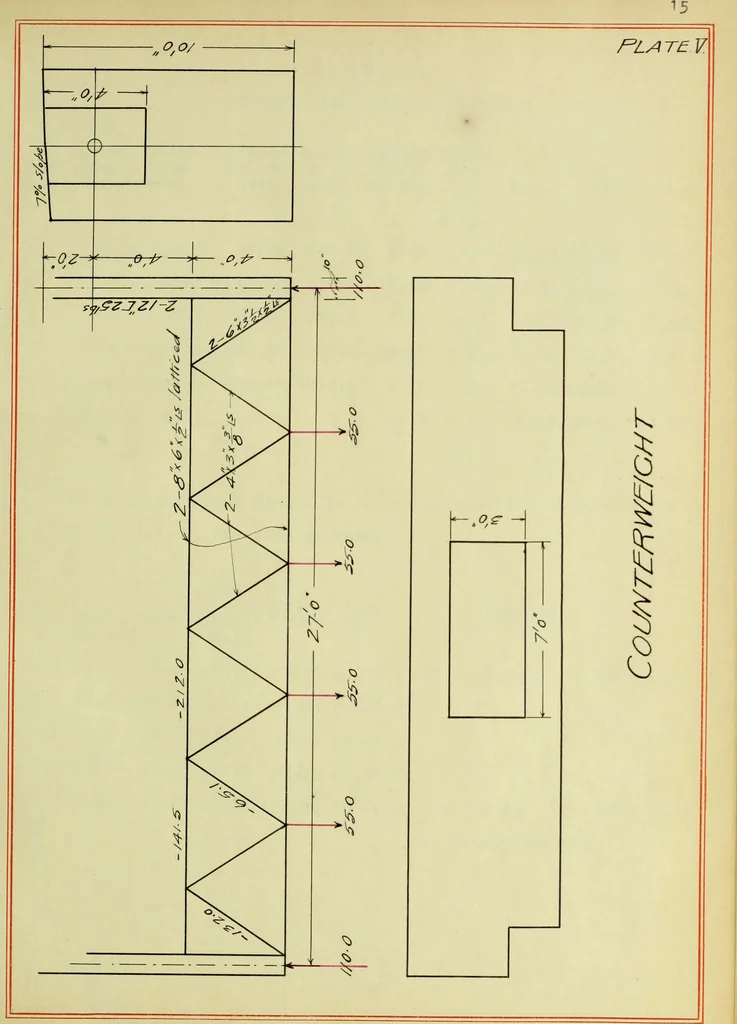

of the counterweight re-quires much care regarding its shape. This shall be dealt with moredetailed in Art. 1 Art. 9» Flange Stresses and Areas The maximi-im live load stresses are com-puted when the wheel con-centration comes right at the end of the cantilever and the portionof the bridge in front… … TABLE ISTRESSES AND SECTION OF FLANGE 16 Total Total M.D.L. M.L.L. Dep.in Depth Sec- Mom. Mmox on one on one f t. B bet. Unit tion D.L. L.L. leaf leaf to B J8 e.g. D.L. Stress Area of - Flan. 2 55.2 2^0.0 1 7.60 140.0 1.94 1 .52 11 .57 1^.75 0.62 4 122.6 ^2^.25 61 .50 414.1 2.4g 2.15 2^.46 1^.75 1…
