Mechanical drawing problems for high schools, normal schools and vocational schools (1918)
Berg, Edward. [from old catalog], Kronquist, Emil F. (Emil Fritjoff), b. 1882 · Peoria, Ill. : The Manual arts press · leaf 36

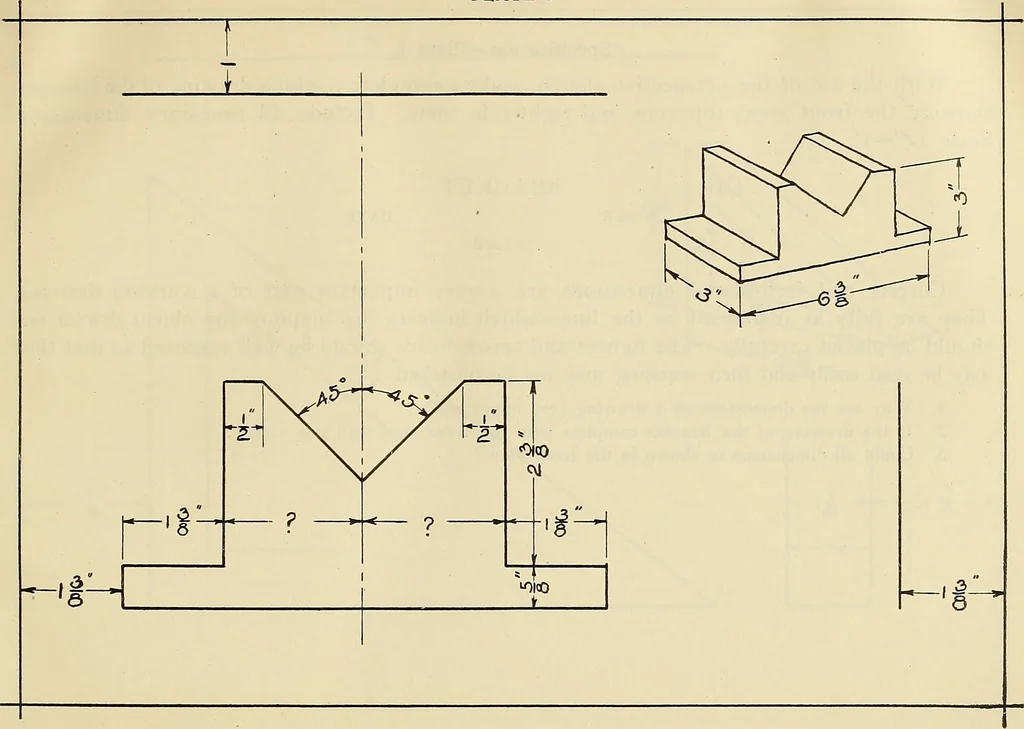

ure of the article drawn. A good drawing must show enough views to indicate clearlythe shape and size of the different parts, surfaces and edges, and their relation each to theother. This may necessitate three or more views and should have at least two. 1. How many views should be shown in a… … 34 MECHANICAL DRAWING PROBLEMS Specification—Plate 7. With the aid of the perspective sketch, make a complete working drawing of the Bracket,showing the front view, top view and right-side view. Inckide all necessary dimensions.Scale I2=i. Title:— BRACKET SCALE • DATE NAME Correct and well-placed…
Mechanical drawing
