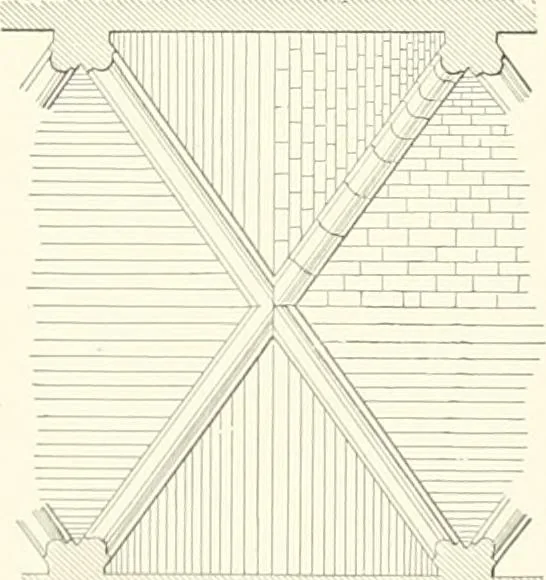

Fig. 48 (Plan and Section). equal baiTel vaults, but is just the reverse of the groined, the internal angles being reentrant. (d) A square space at the corner of a cloister is often covered by two intersecting barrel … Fio. 49 (Plan). vaults, the iiuier quarter being groined and theouter cloistered (Fig. 19). (e) Figure 20 shows a method of covering asquare space by a combination of groined andcloistered vaulting, occurring in a mosque atEpbesus. (/) A square room may be severed by fourJul VAULT quadripartite…
