A dictionary of electrical words, terms and phrases (1898)
Houston, Edwin J. (Edwin James), 1847-1914 · New York, The W. J. Johnston company · leaf 71

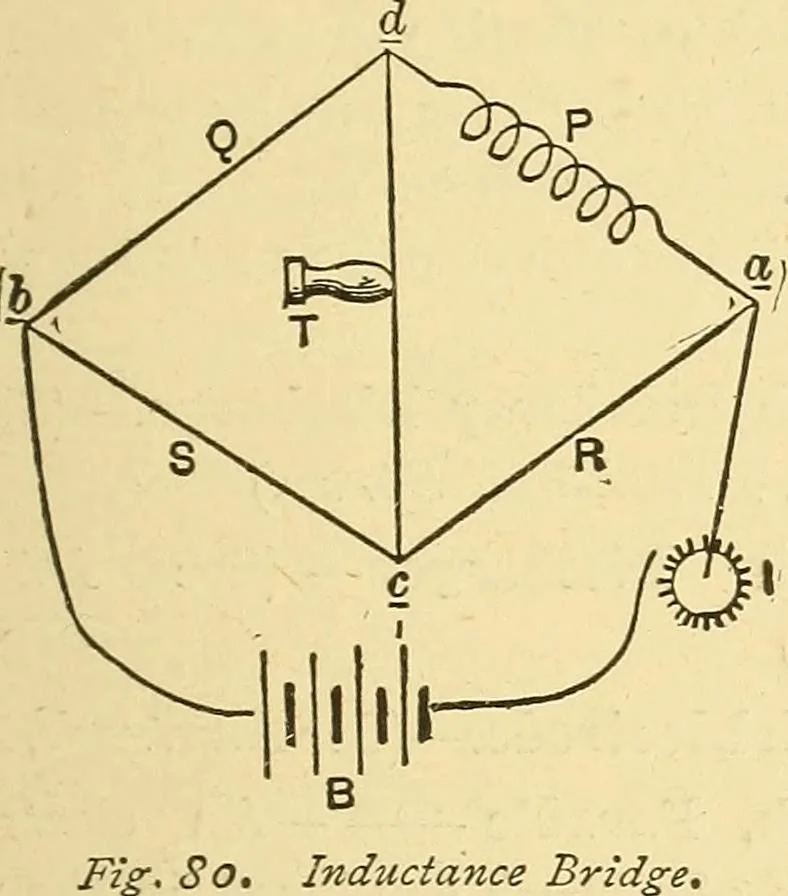

Fig. 80, form the bridge. The re-sistances, Q, S and R, consist of sections of Ger-man silver wire, one metre in length, each ofthe resistance of 4 ohms. P, is a coil of wire pos-sessing sensible inductance. The object of the Bri.] 61 [Bri, bridge is to measure the value of this inductance.I, is an… … Fig. So ance can be effected and silence obtained in thetelephone. Now remove the interrupter and place it in thebattery circuit between b and a, as shown in Fig.80. If now, the interrupter, I, be made to rapidlyinterrupt the battery current, this balance isdestroyed, and cannot be again obtained…
