A dictionary of electrical words, terms and phrases (1896)
Houston, Edwin J. (Edwin James), 1847-1914 · New York, The W.J. Johnston company · leaf 266

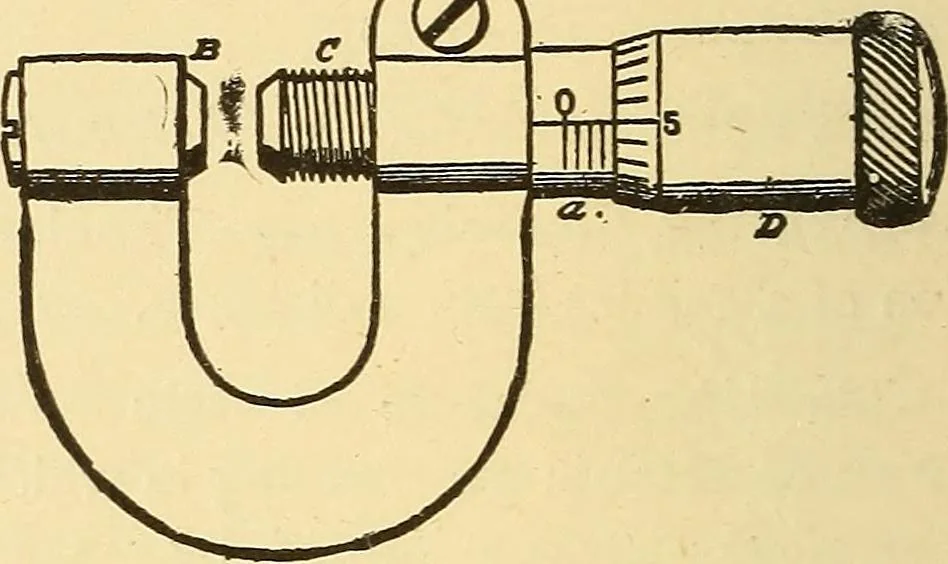

he distancebetween two contiguous threads, is therefore -^or .02 of an inch. One complete turn of the screw will, therefore,advance the sleeve D, over the scale a, the .02 ofan inch. If the screw is only moved throughone of the twenty parts marked on the end ofthe thimble or sleeve parts, or the ^… … Fig. 283. Vernier Wire Gauge.space between them, and the reading shows twoof the larger divisions on the scale a, three of thesmaller ones and three on the end of the sleeveD, then Two large divisions of scale a = .2 inch Three smaller divisions of scale a.. = .06 Three divisions on circular scale…
Electricity · Electrical engineering
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
