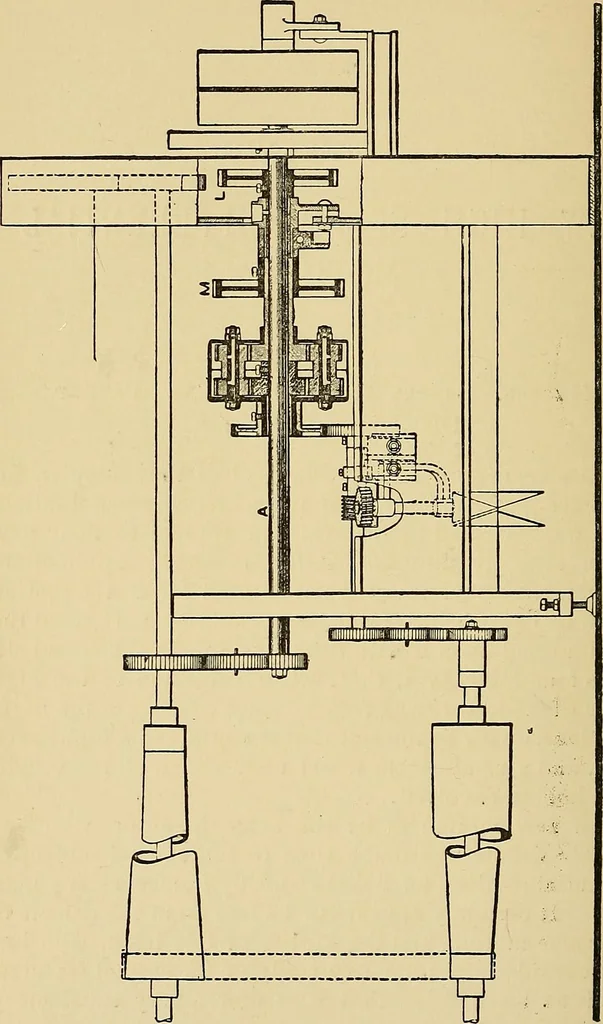

a high speedworm, and a small worm wheel upon which all the weightof the bobbin devolved. The new motion is by the same inventor, who hasprobably devoted as much time to the special subject ofdifferential motions for bobbin and fly frames as any manliving. It certainly appears to be free from the… … 221 DETAILS OF CONSTRUCTION. To illustrate the construction and mode of operation ofof this motion reference must be made to Figs. 52, 53 and 54.In all these figures A is the first motion shaft of the machine.Referring, in the first instance, to Fig. 52, a general view ofthe new motion and all its…
