Hummel, J. J. (John James), d. 1902 · London : Cassell · leaf 280

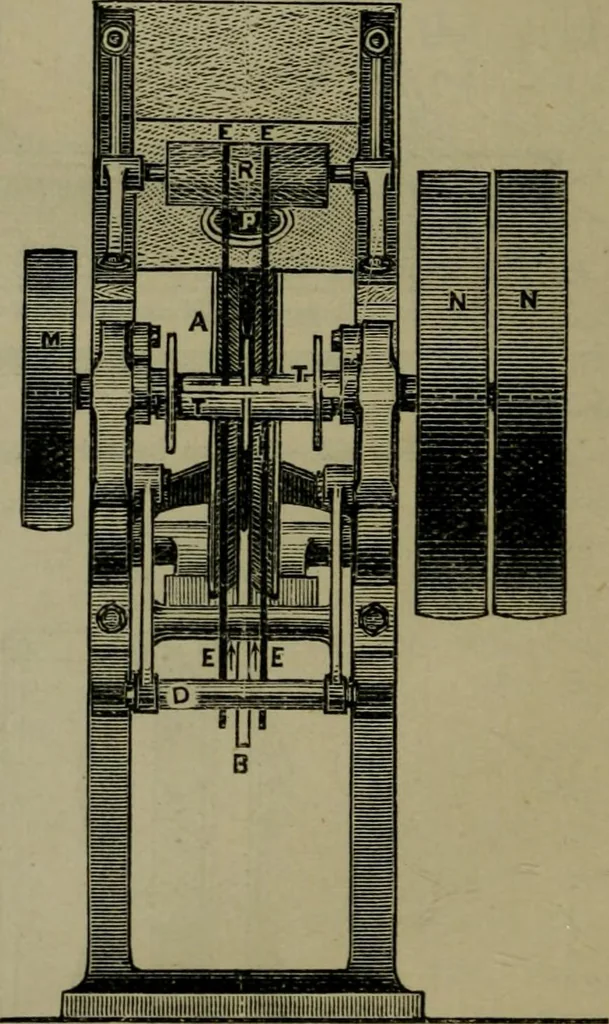

opted incalico bleach works, (fee.In this machine the clothstrand is conflned andcompressed in a narrowgroove. The fabric E isdrawn into the squeezerwith tolerably uniformtension ensured by reason of the swing bar d. The ten-sion bars T T are fixed in such a position that the clothin going over the… … Fig. 6i.—Birchs Squeezing Roller(Front view). Chap. XII.] MACHINERY FOR COTTON CLOTH. i>67 The cloth is drawn from the machine by means of aroller or wincli actuated by the pulley m. The pressureof the brass disc B against the grooved roller a is regu-lated by the screw c connected with lever…
Dyes and dyeing
