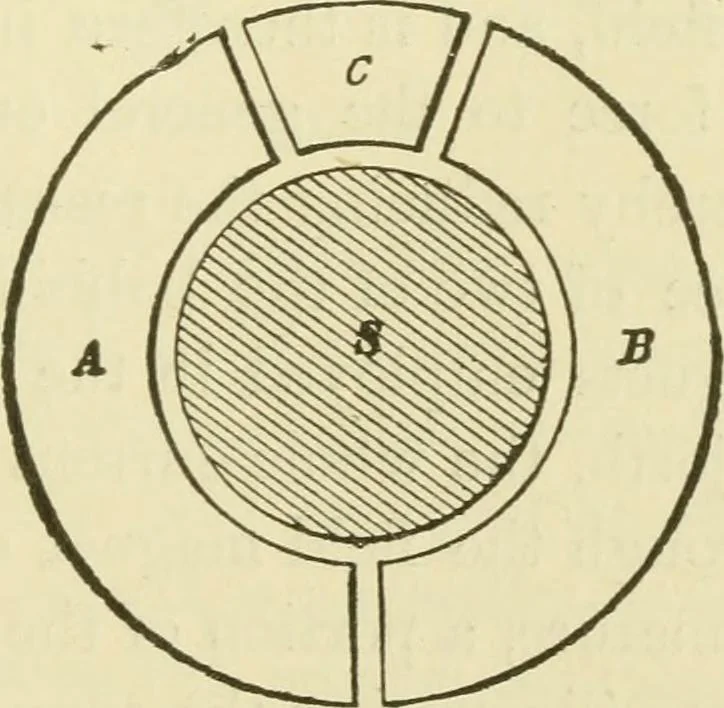

Fig. 386. The inner end, A^, of the coil, is connected to A5, which is theinner end of the coil 5 ; A^ is connected to A^, A^ to A^, and soon round the ring, and the outer ends, B^, etc., are all connectedto the commutator bj insulated conducting wires. The twofree ends of each pair of… … ilg. as*?. passing through the shaft of the machine, attached respectivelyto two diametrically opposite segments of the same commuta-tor, which segments are insulated from one another and fromany other pairs of coils. Qhe commutator, which is attached tothe driving shaft of the machine, consists of…
