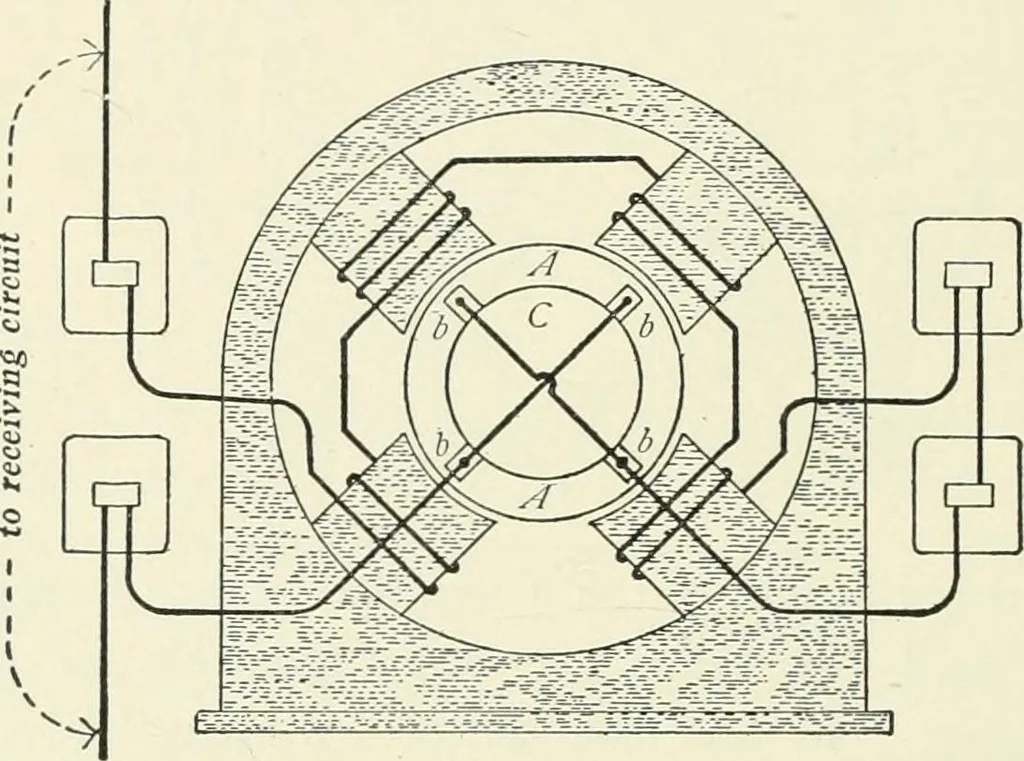

6o DYNAMOS AND MOTORS. pole) with its field rheostat; A A is the armature, dd/^d are thebrushes, and C is the commutator. The brush leads are con-nected to terminal blocks to which the receiving circuit and theshunt field winding are also connected. Figure 43 is the con-ventional diagram of… … Fig. 44 turns of heavy wire having a low resistance. In this case thefield winding is connected in series with the external receivingcircuit, the whole current delivered by the machine flows throughthe field winding, and from two to ten per cent, of the electro-
