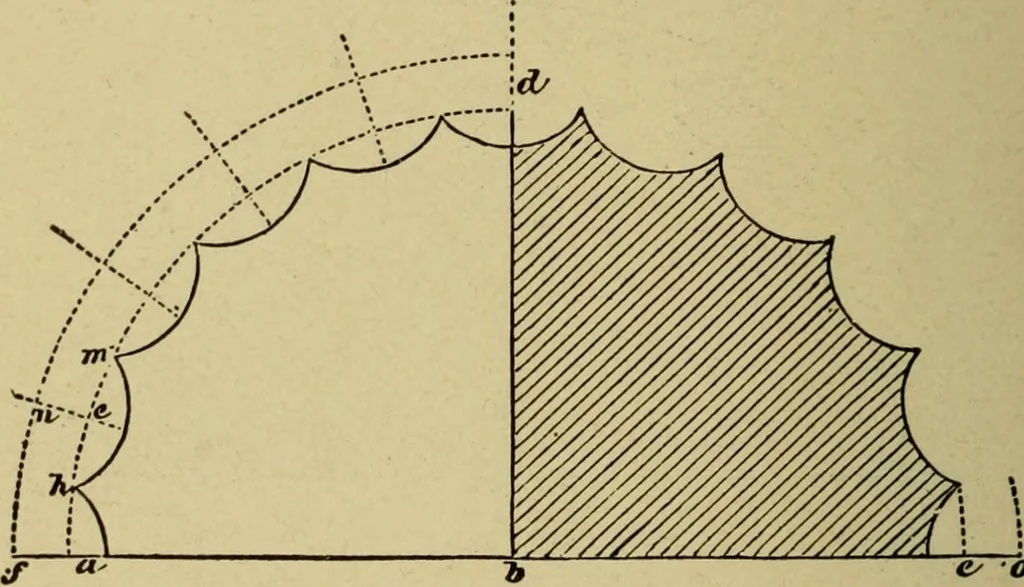

in the example. Divide the part a g intoeight equal parts; and with three of these asradius, from the points in the quadrant, as g, f, 220 ARCHITECTURAL DRAWING SELF TAUGHT etc., describe semicircles. Six parts will thus begiven to each flute, and two to each fillet; andthe column will have… … Fig. 236. equal parts, as e, m, n, etc., giving to the entirecolumn twenty-four flutes as before. Drawradial lines from b. Divide a f into four equalparts, and lay one of these on a b produced to e;from b, with b e, describe a semicircle as e m n,cutting the radial lines. Bisect a f in o, andwith f…
