Edwards Manufacturing Company · Cincinnati, Ohio : Edwards Manufacturing Company · leaf 27

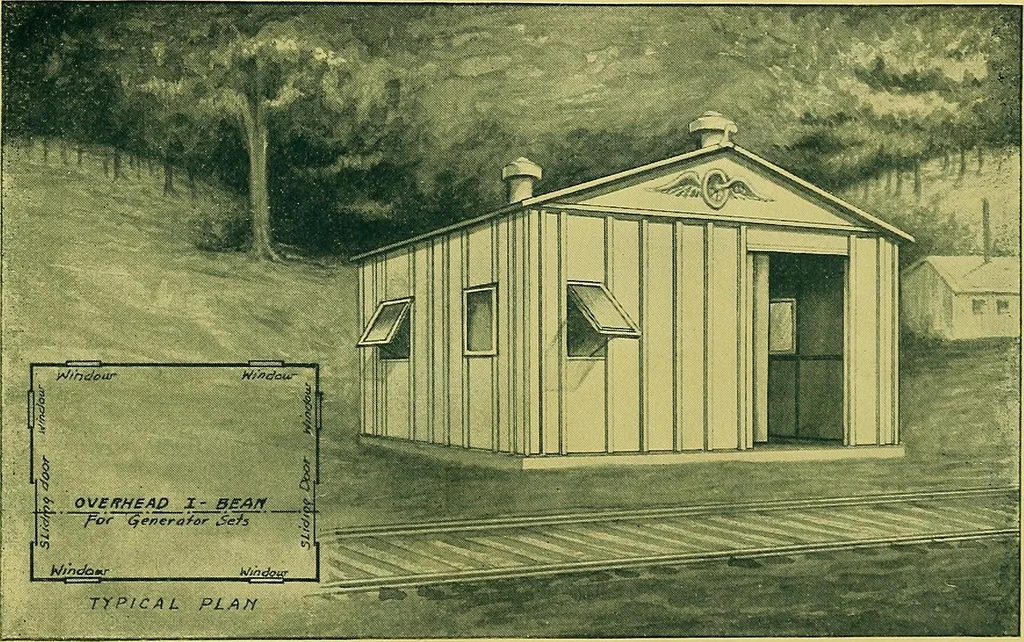

SUB-STATIONS A ■well-designed practical ALL-STEEL building for Sub-Stations for use in coal mining opera-tions. This building is designed to house generator sets, and is well lighted and properly ventilated. The foundation to which the building is to be bolted should be of concrete. In the… … FIG. 41 Our Standard Sub-Stations have a framework of structural steel, riveted and bolted together.The siding and roofing are of No. 26 gauge Gahanized Interlocking Beaded Steel, with one piececorners, and stiffening bars. (See page 9.) The gables are shi])ped comjiletely assembled in one piece.…
Building, Iron and steel · Buildings, Prefabricated · Building materials · Service stations
