The elasticity and resistance of the materials of engineering (1915)
Burr, William H. (William Hubert), 1851-1934 · New York, John Wiley & Sons, inc.; [etc., etc.] · leaf 85

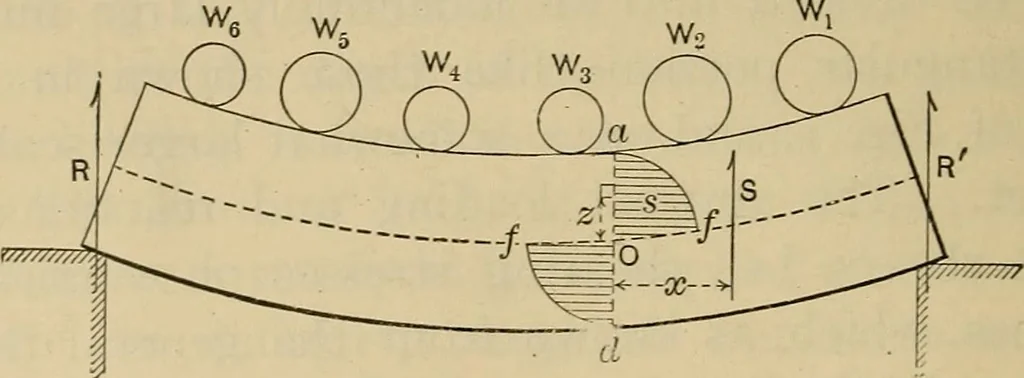

ng the same intensity and act- 58 FLEXURE. [Ch. II. ing either toward or from a given edge. Each horizontallayer of the beam is, therefore, made to slide a little overthe adjoining layers above and below it, as shown at A andA in the lower part of Fig. i. Wi Wo w. w= w« OOP ,0,0 O i^//////M/.A \:… … Fig. 2. the same section be represented by 5. Then if x m.easured Mhorizontally from the section ad be so taken that ^=5. Art. 15.] THE DISTRIBUTION OF SHEARING STRESS. 59 and if the intensity of the direct stress of tension or com-pression at the distance z from the neutral axis be repre-sented by…
Strength of materials · Building materials
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
