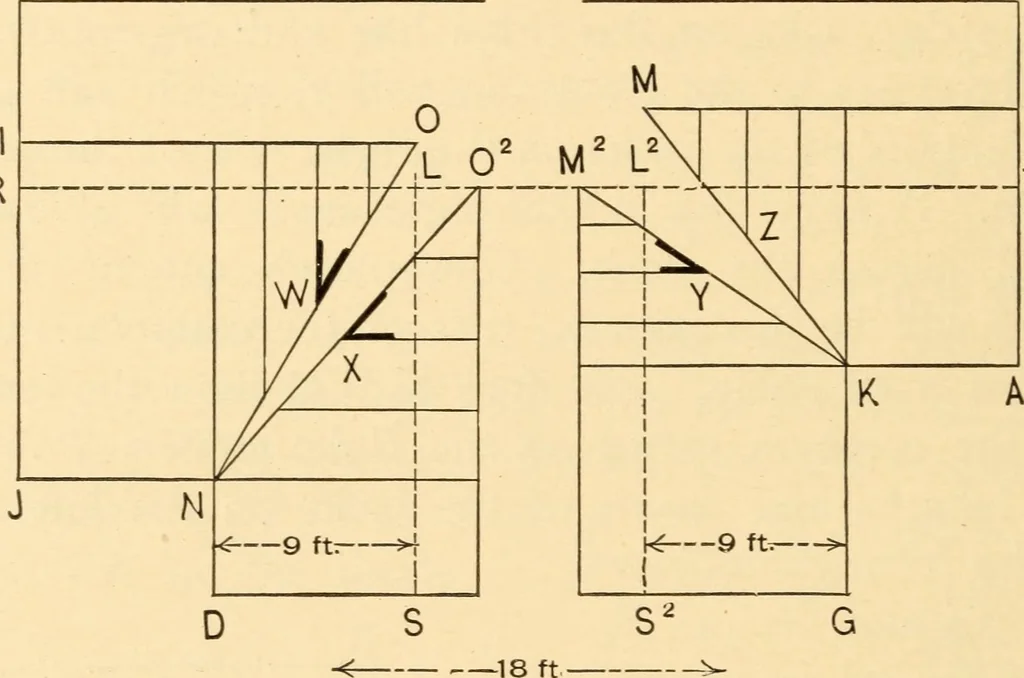

on the left side of the front 0 1 ^ I H F \ I J 3 Fig. 77.—Finding Lengths and Bevelsof Jacks on the Left Side of theFront Gable. 112 THE BUILDERS - GUIDE. gable. A bevel set in the angle at x will give the bevelacross the back. The plumb cut or down bevel will bethe same as that of the common… … 18 ft N Fig. 78.—Diagram Showing More Clearly the Different Cutsof Jack Rafters. give another diagram showing the different cuts ofthe jack rafters in a much plainer manner, andwhich to many, perhaps, will be more satisfactory.Fig. 78 shows the wall plate lines exactly the sameas in Fig. 74, except…
