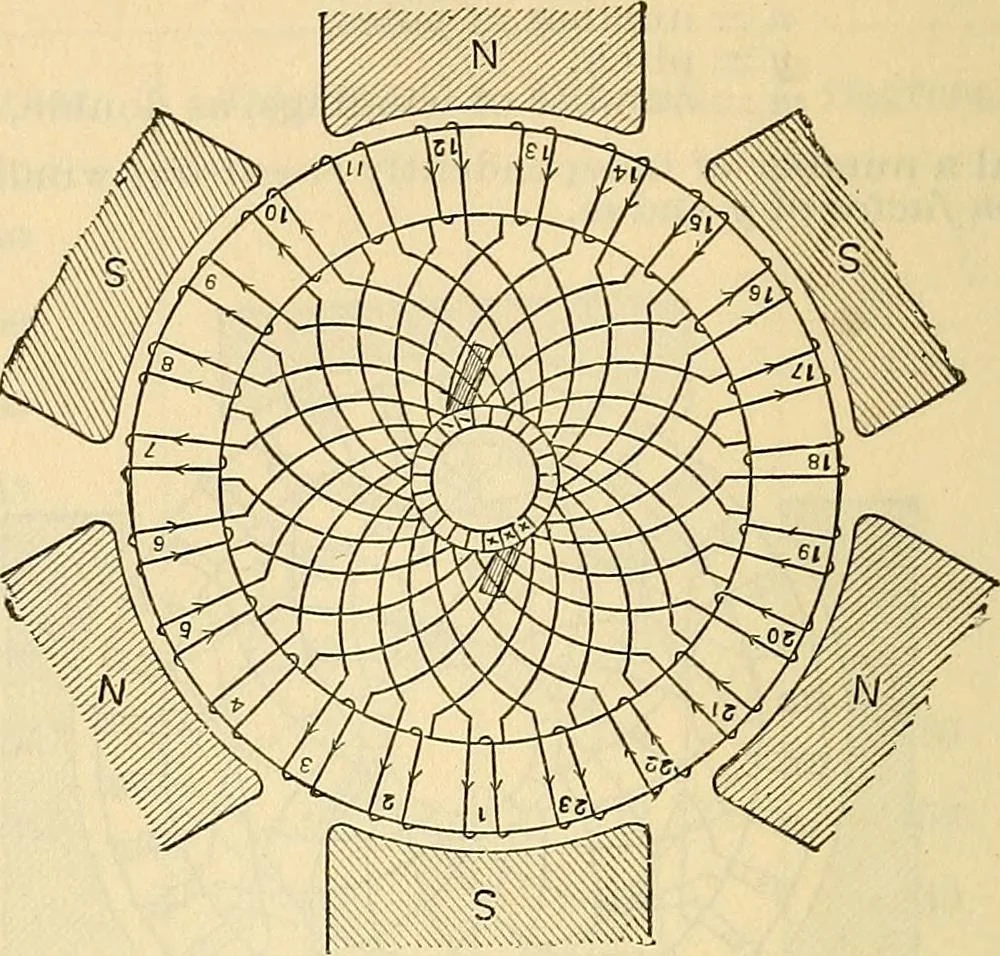

in Fig. 47.Fig. 48 is a diagram of a two-circuit, singly re-entrant, double-wound ring. Drum WiiB4li]i£.«>, In order that the E.M.F.s generated in the coils of a drum armature maybe in the same direction, it is necessary that the two sides of each coil be infields of opposite polarity, and… … Figure 49 shows the Von Hefner-Alteneck drum winding, used principallyin small and smooth core armatures.
