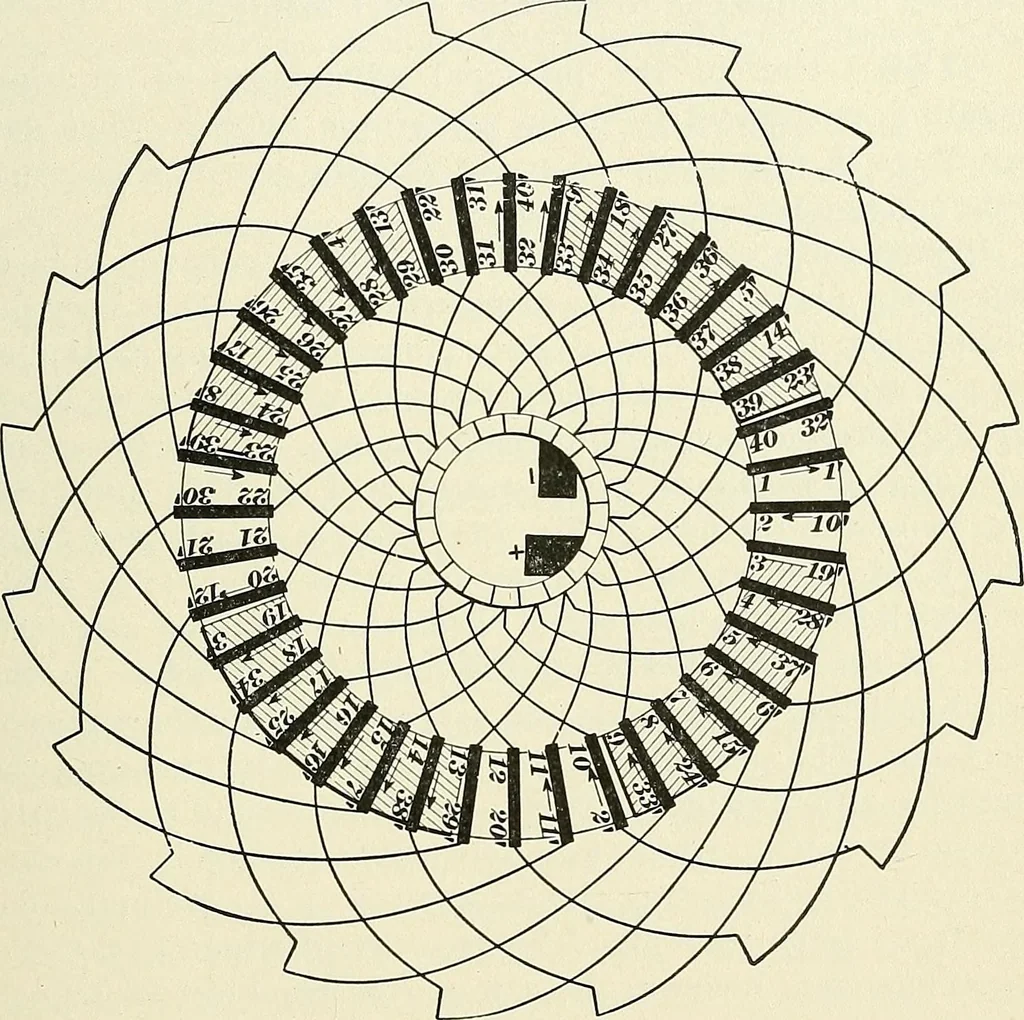

presented,they being numbered 1, 2, 3, etc. Since the greatest com-mon factor oi y (9) and m (2) is 1, this winding results in a APPLIED ELECTRICITY. 2015 single reentrant system, the order in which the conductorsare connected being indicated by the numbers i, 2, 3, etc.Two brushes are shown, the… … Fig. 1182.arrows which, with the other conductors, indicate the direc-tion of the current in them. The path of the currentthrough the four circuits of this armature, starting from the— brush, is as follows: j 1-10-19-28-37- 6-15-24-33-2 )■j 32-23-14- 5-3G-27-18- 9 ) j 39- 8-17-26-35- 4 ) 1…
