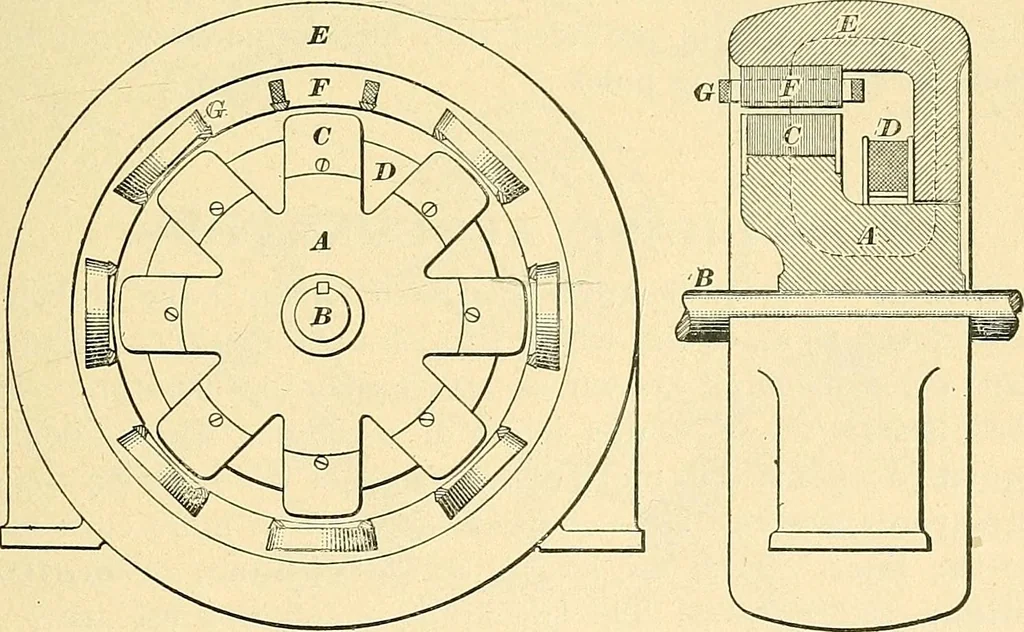

inductor type of alternator, the collectorrings for supplying current to the field may be done awaywith, and a machine obtained which has no moving contactswhatever. In this class of machine, a mass of iron orinductor with projecting poles is revolved past the station-ary armature coils. The… … Fig. 1525. of the Westinghouse inductor alternator. In this machinethe circular iron frame E supports the laminations F, whichconstitute the armature core. These are provided with slotsin which the coils G are placed. Inside of the armature isthe revolving inductor A^ provided with the projections…
Electrical engineering
