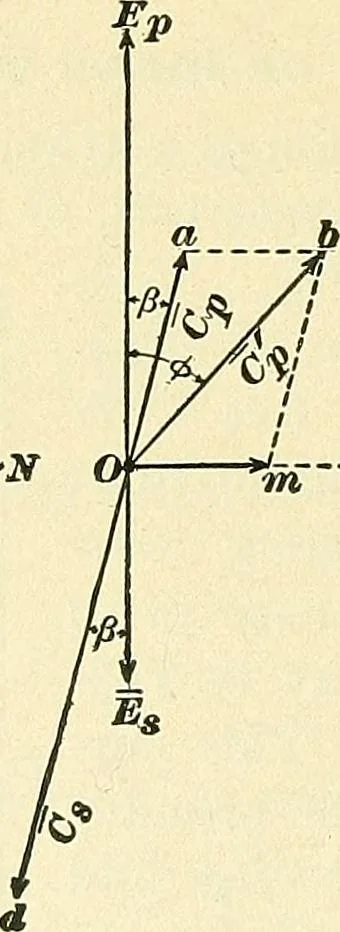

al transformer in this case is repre-sented by Fig. 1546. The lines O N and O in represent themagnetic flux and the magnetizing current as before. O E^is drawn to scale to represent the primary E. M. F., andO E^ represents the secondary E. M. F. Let R be theresistance of the non-inductive circuit… … -*N ■*lf Fig. 1546. Pig. 1547. current in the primary corresponding to C, in the second- - - Tary will be Cp= C^~, and may be represented by the line CURRENT APPARATUS. 2697 O a opposite in phase to O d and representing Cp to the samescale that 6^<^ represents C^. In the case shown, E^ =…
