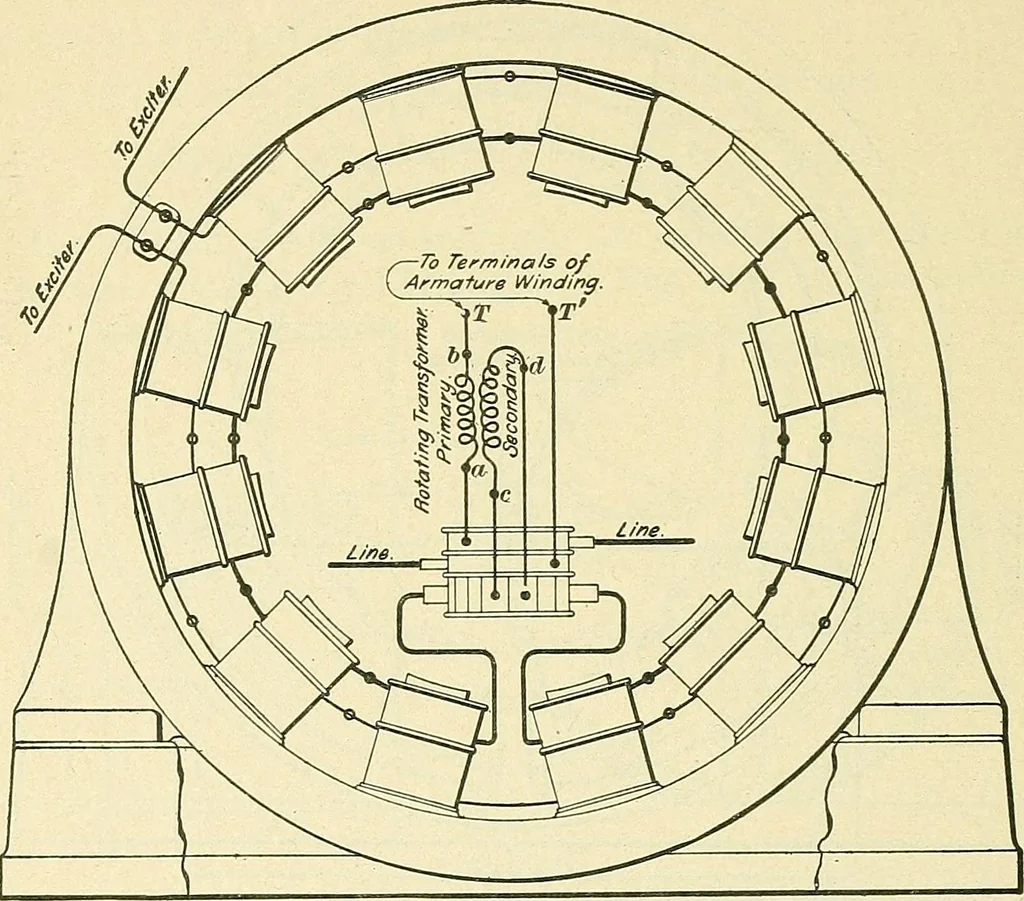

ted ^836 DESIGN OF ALTERNATING to the series field by means of the connection boards c, c.The connections between the series field, armature, rectifier,and collector rings shown in Fig. 1656 are those which areused on the General Electric Co.s machines of this type.The Westinghouse Co. use a… … other end of this primary connects to the collector ring asshown, so that all the current flowing through the armaturepasses through this coil. The secondary c d oi this trans-former connects directly to the two sides of the rectifier,which in turn connects to the series field by means of…
