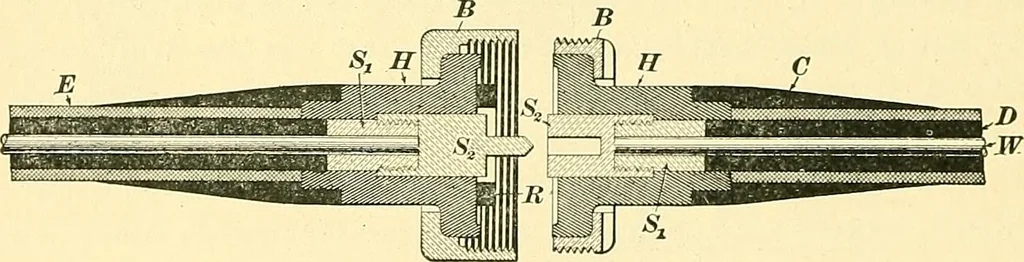

Fig. 28. Fig. 28 shows the joint made and Fig. 29 shows it broken.To make the joint, the lead armor, or sheath, E is strippeda sufficient distance from the end to permit the slipping onof the hard-rubber jacket H, after the terminal S1 has beensoldered to the copper conductor IV, first tinning the… … part of the brass coupling B, then the hard-rubber jacket H,with the brass coupling B, is passed over the terminal Slfand the piece S„ is screwed on contact terminal Sy Purerubber, which generally comes in sheets, is cut into stripsabout 1 inch or 1£ inches wide, and the joint is taped asshown at…
