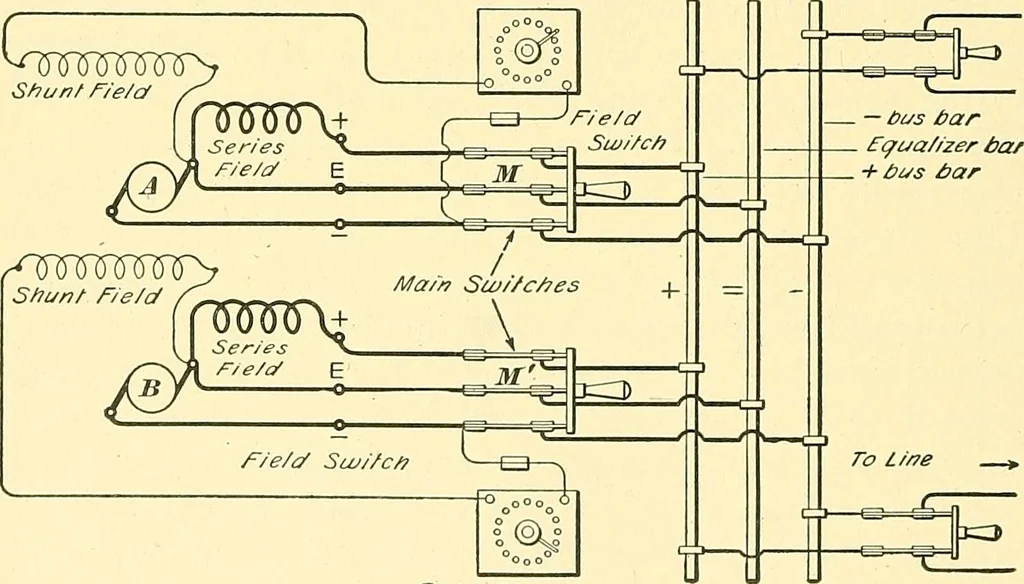

d thus build up the voltage ofmachine B and equalize the load. If B delivers more cur-rent than A, the drop in be exceeds that in ad and currentflows through the path b-E-a-c-M-d, builds up the voltageof A, and makes A take its share of the load. 85. In Fig. 60, the equalizer E is shown as… … f/e/af f?/?eosfafA/o. 2 Fig. 61. The only thing that must be looked out for is to see that theequalizer connects the brushes to which the series coils areattached, and also to see that these brushes are of the samepolarity. In some cases, the equalizer wire is run directly §15 ELECTRIC…
Electrical engineering
