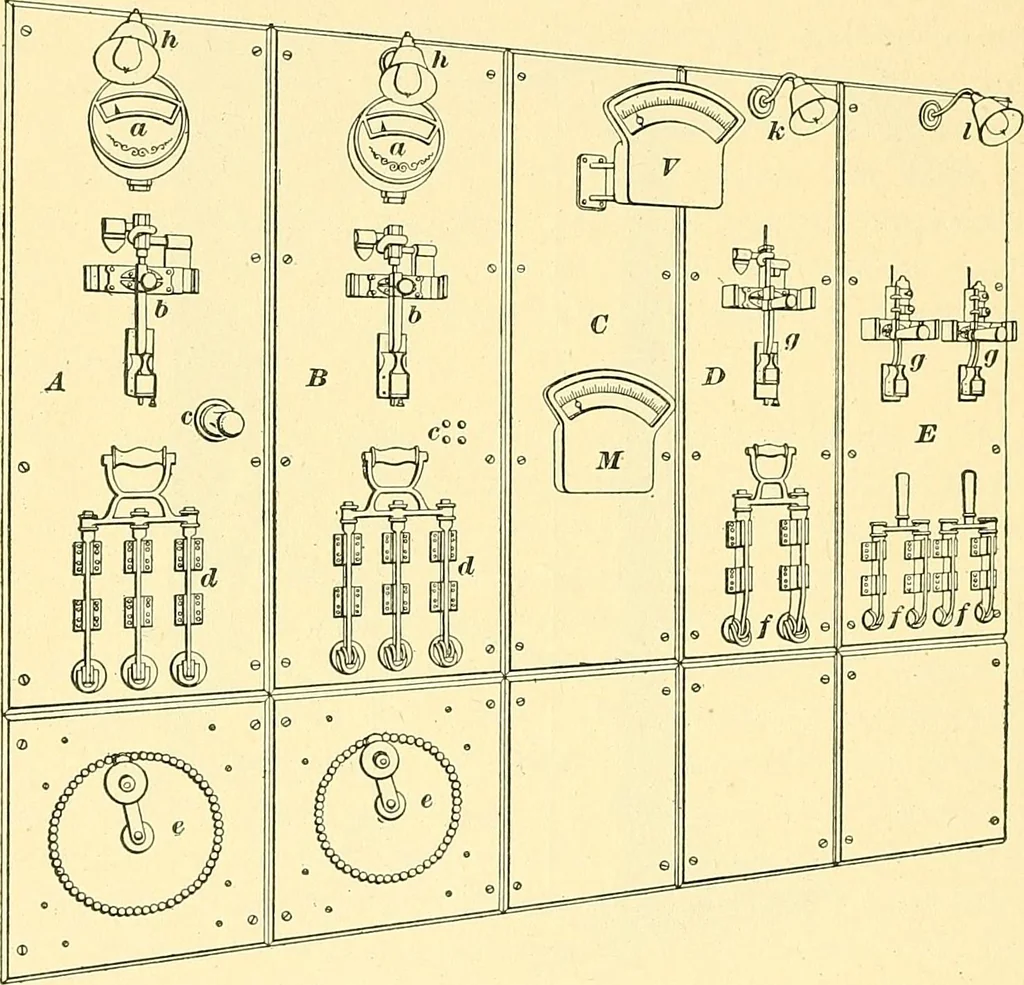

ines in Fig. 55, the panels being held together bymeans of bolts passing through holes h in the angle iron. 52 ELECTRIC LIGHTING. 17 DIRECT-CURRENT SWITCHBOARDS. 44. Fig. 56 shows a typical direct-current board arrangedfor two generators and three feeders. A and B are thegenerator panels. D and E… … Fig. 56. dynamos. This panel also carries the station voltmeter V,which is mounted on a bracket, so that it may be set atwhatever angle it may be seen to best advantage. Eachgenerator panel is equipped with an ammeter a, a circuit-breaker b, voltmeter plug and receptacle c, main switch d,and…
