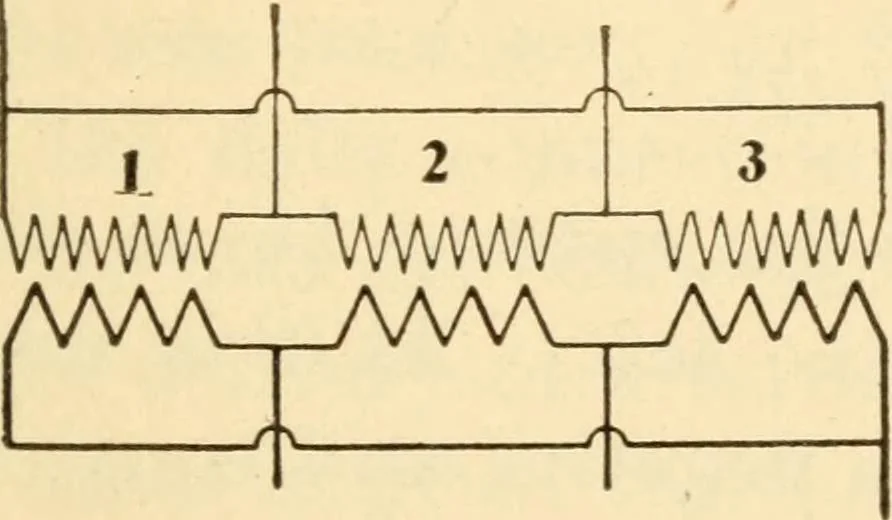

WWW WWW mmmLjmimm o o vwwv1 Wa/v pM/ww\ fmmim Figure 111 Figure 112 age and overheat the transformer unless fuses areblown. Two transformers of the proper frequency, but onlyone-half the voltage of the circuit may be operatedin series in either of the ways shown in Figures 111and 112. … vwwwv wvwwv wwww Figure 113 Figure 114 Figures 113 and 114 shows methods of connectingthree-phase transformers. Figure 113 shows what istermed the delta connection and Figure 114 the Y orstar connection. The delta connection has the ad-vantage that the burning out of one transformer does 164…
