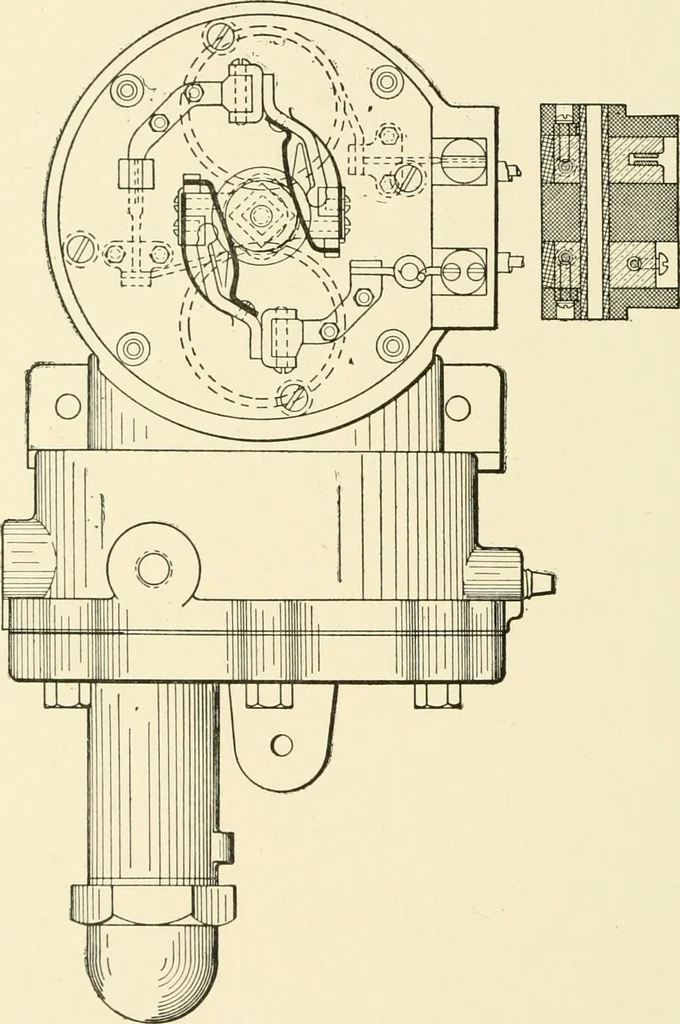

permitted to cool atleast fifteen minutes. This compressor is suspended under the car,in the position shown in Fig. 88, when in service. The method ofsuspension permits of its being readily removed for repairing. 189 94 ELECTRIC RAILWAYS Pump Governor. The location of the governor is shown in… … Fig. 89. Front View of Pump Governor view in Fig. 89, and in section in Figs. 90 and 91. The chamberA is in communication with the reservoir. The other side of thediaphragm 1, which forms one wall of the chamber A, is open tothe atmosphere. The diaphragm 1, therefore, is subjected to reser- 190…
