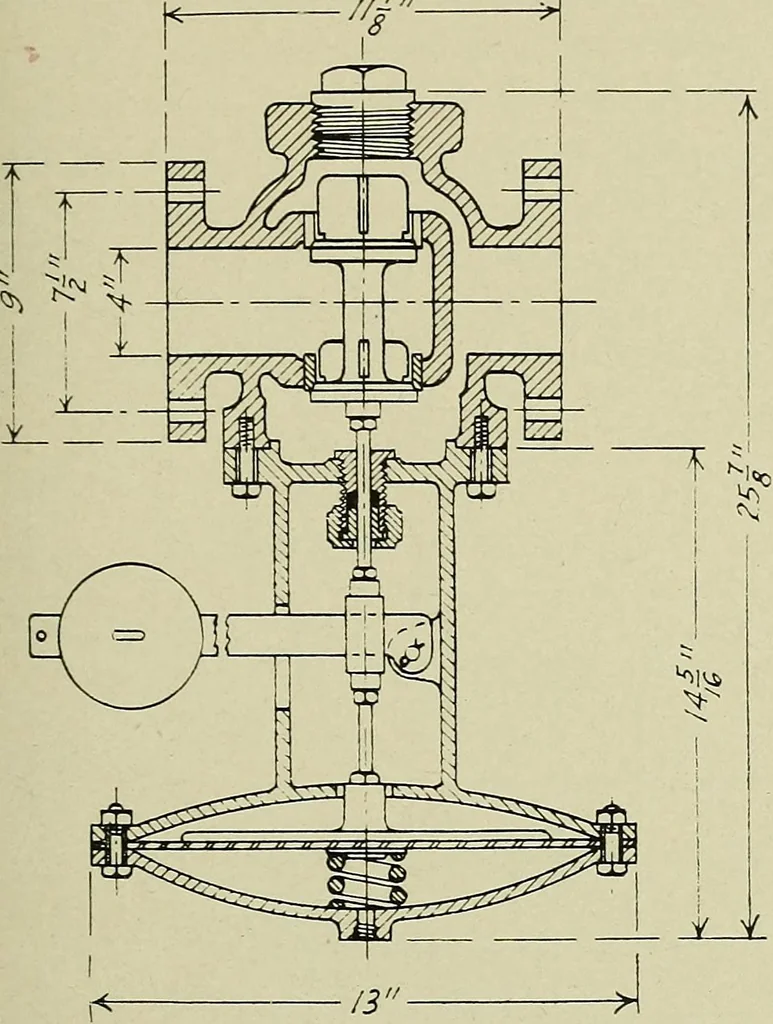

rawing were drawn exactlyalike, the drawing would not beeasy to read. For this reasonthe lines used are varied in ap-pearance so that they may berecognized readily. This maybe done by varying the weightof the lines or by breaking theminto various combinations oflong and short dashes. The… … Fig. 65.—An assembled drawing.
