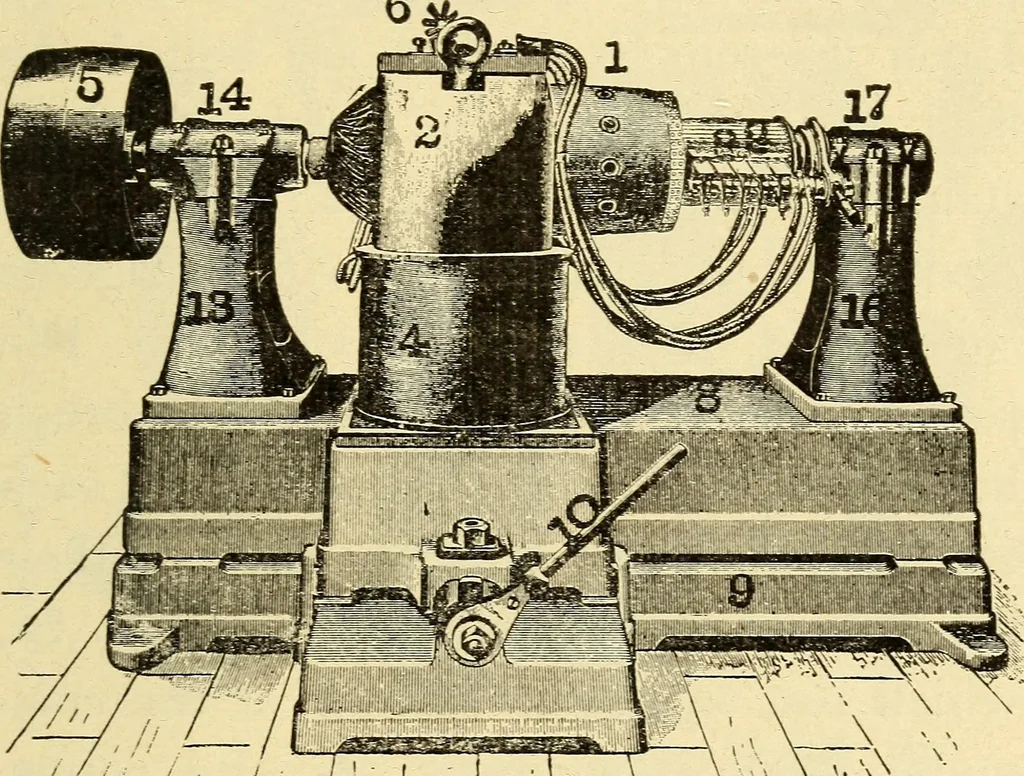

responding numeralsrepresent corresponding parts. 1, is thecompleted armature, mounted on its shaft,Avith a commutator at one end, and withthe insulated winding wrapped round andround the iron core or hodi/^ and suitablyconnected Avith the commutator. Theshaft rests in Journals 15 and 18,… … ._^^;,_\^^ x> Fig. 29.—Fokm of Electric Motor. the action of the rings 19, as will be laterexplained. On the end of the shaft opposite to thecommutator is secured the jDulley 5. The 164 THE ELECTRIC MOTOE. pedestals themselves rest upon the cast-iron base plate 8, to which they are firmlysecured…
